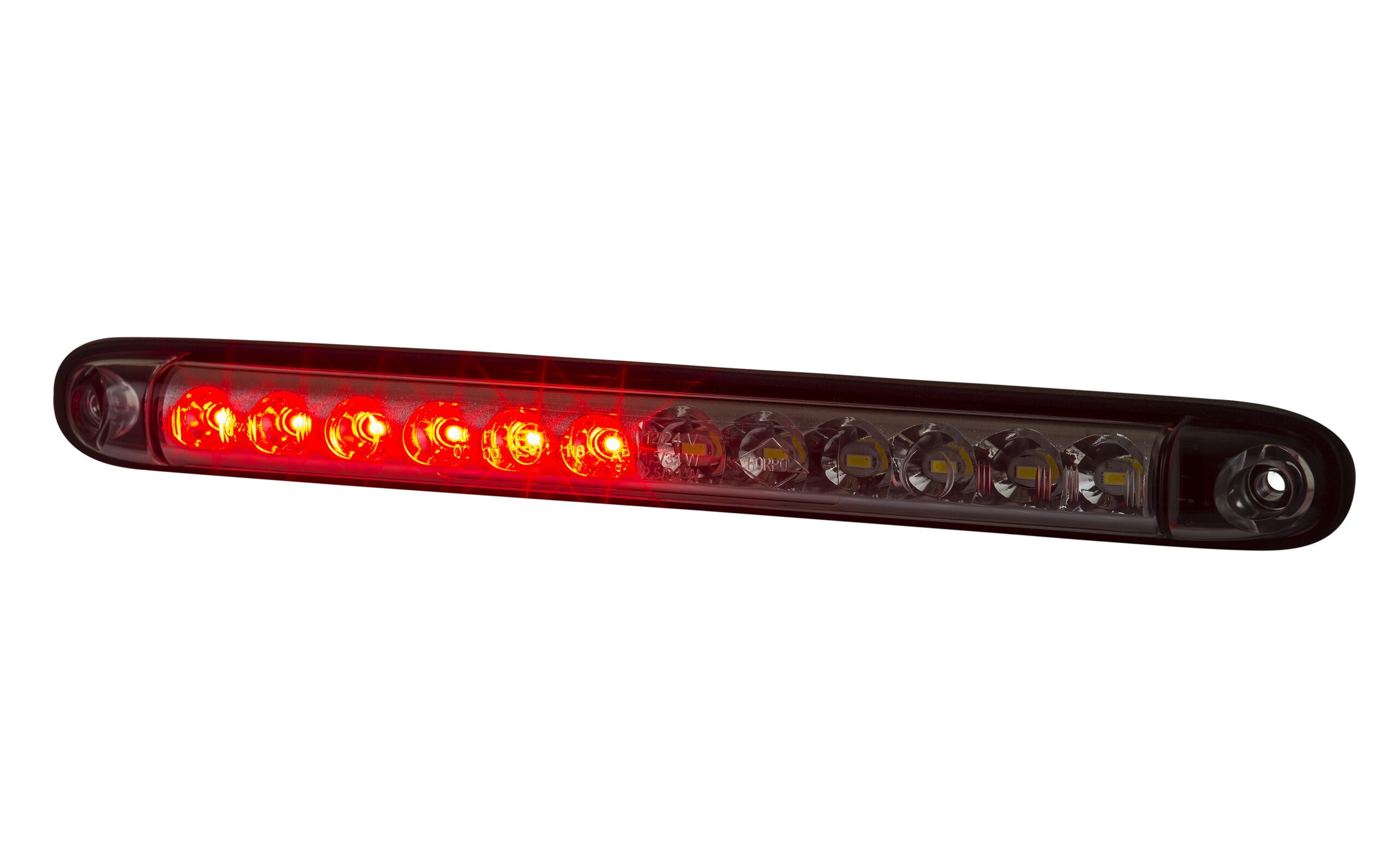

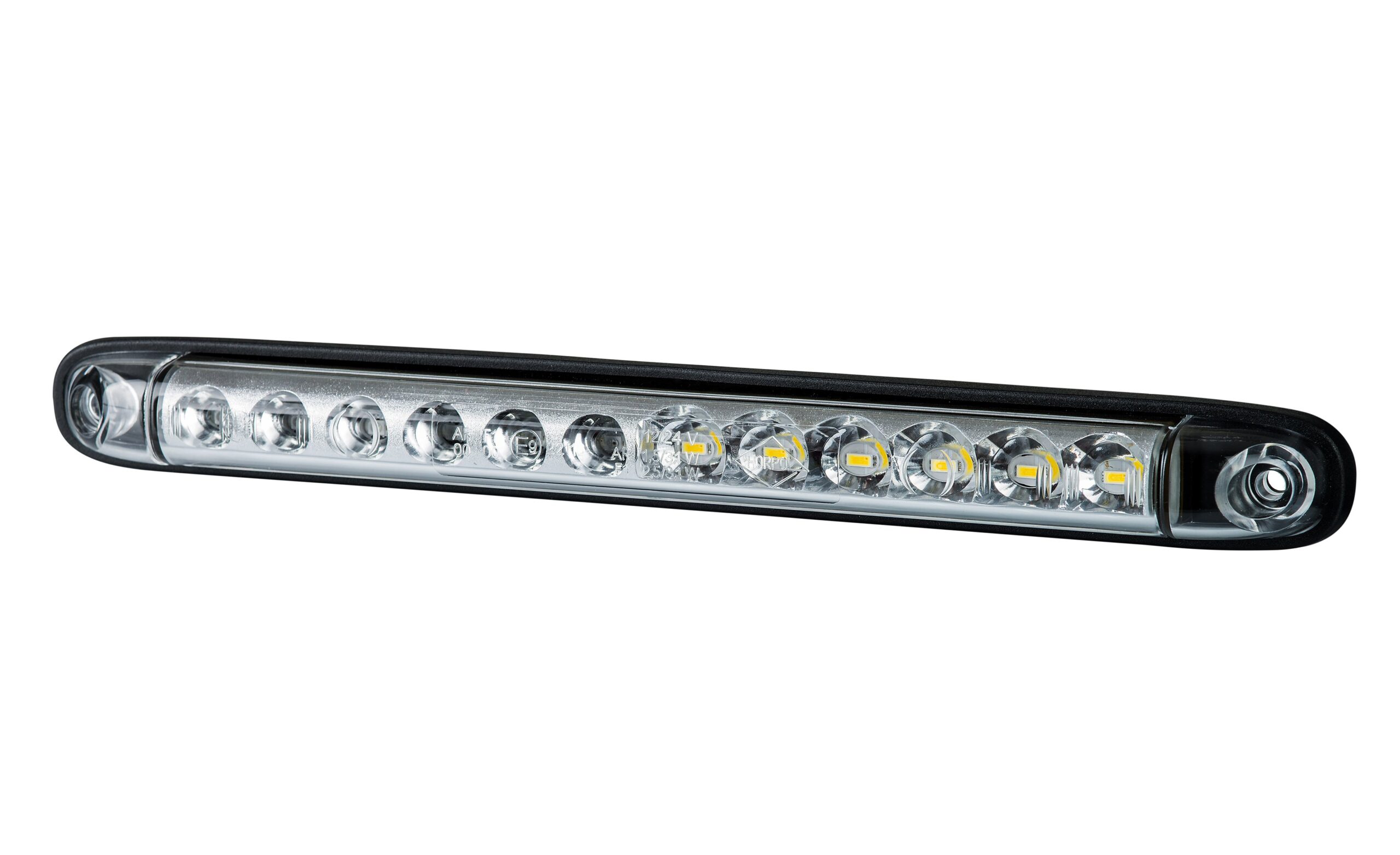

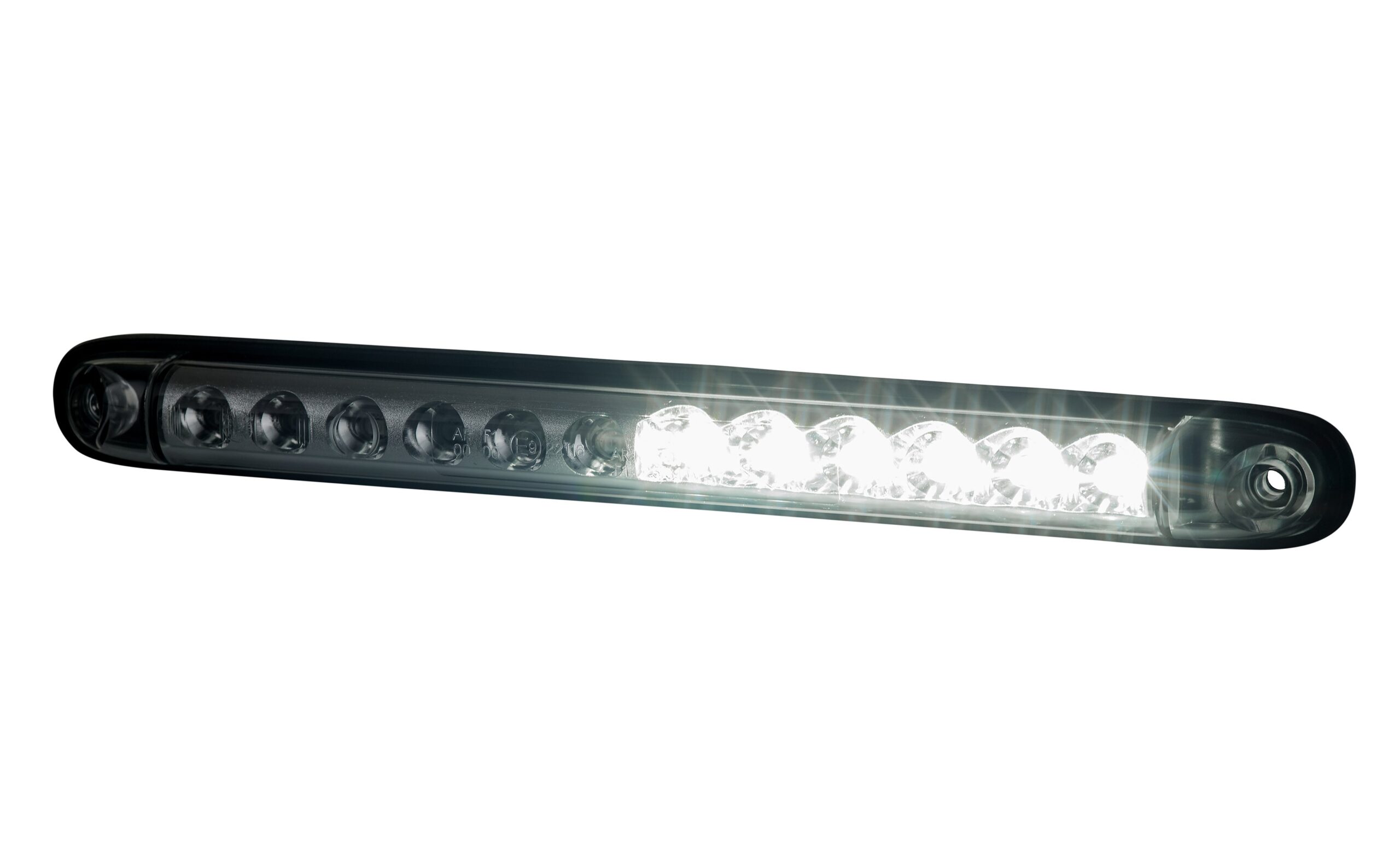

LZD 2252
Rear multifunction light

Technical data

Light group
HOR 86A
LED quantity
12
Light category
multifunction rear
Supply voltage
12/24 V
Operating temperature range
from -30°C to +50°C
Cable
3×0,5 mm2; cable length 1 m
Side
universal
Reversing light
yes
Fog light
yes
LED light
yes
Ingress protection rating
IP 68

Download

Lampa zespolona tylna LZD 2252 (homologation) 1 (lampa-zespolona-tylna-lzd-2252-homologation-1.ZIP)
Download

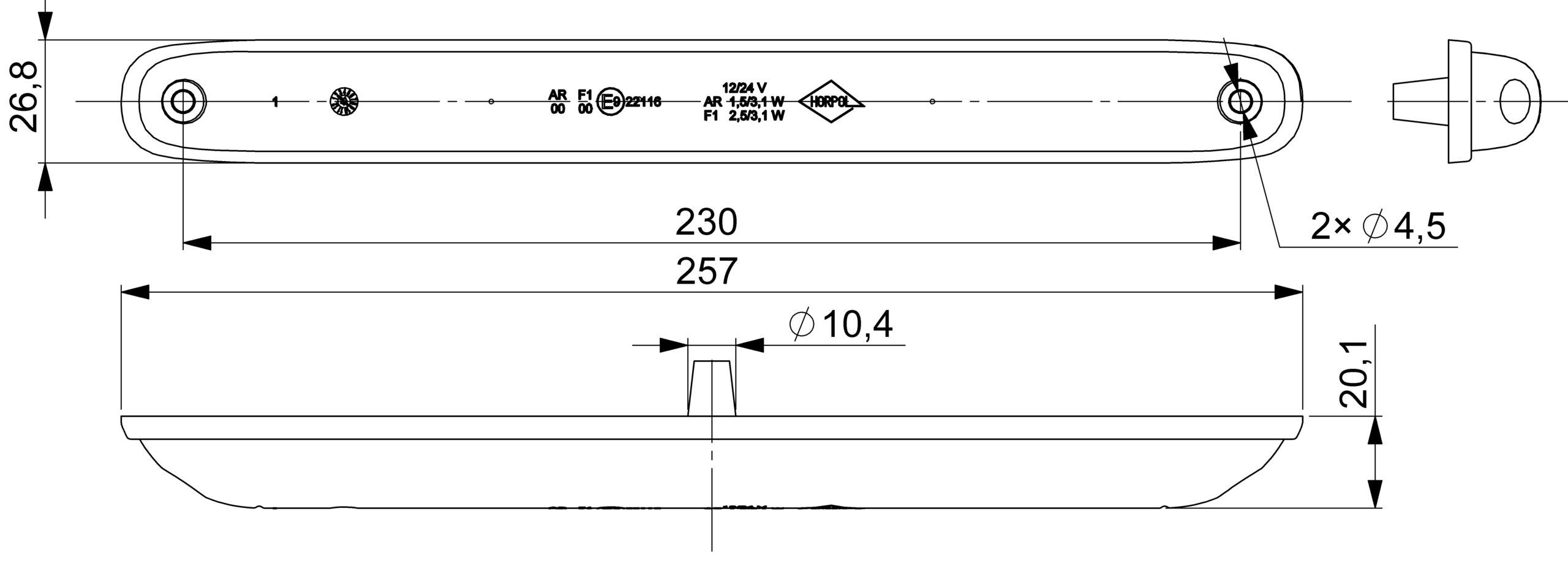

Lampa zespolona tylna LZD 2252 (technical drawing) 1 (lampa-zespolona-tylna-lzd-2252-technical-drawing-1.ZIP)
Download
Lampa zespolona tylna LZD 2252 (homologation) 2 (lampa-zespolona-tylna-lzd-2252-homologation-2.ZIP)
Download
Lampa zespolona tylna LZD 2252 (technical drawing) 2 (lampa-zespolona-tylna-lzd-2252-technical-drawing-2.ZIP)
Download
HOR 86D (approval R10) (hor-86d-approval-r10.ZIP)
Download
Page content (lzd-2252.ZIP)
