LZD 2821
Rear multifunction light STRADA

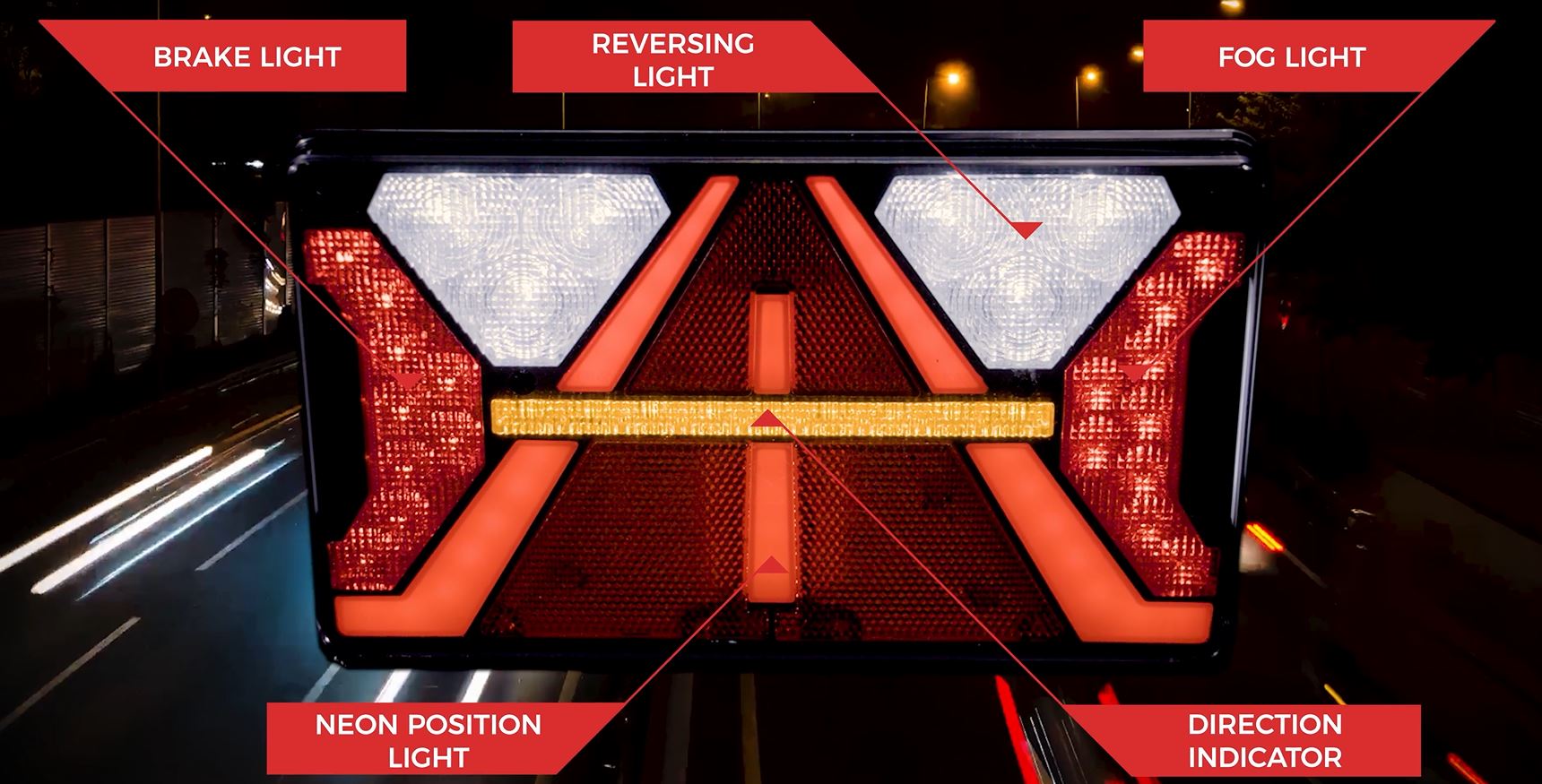

The modern rear multifunction light STRADA LZD 2821 (right) belongs to the HOR 124 product group, requires a universal supply voltage of 12/24 V and equipped with 71 LEDs. The lamp combines all important lighting functions applied for delivery vehicles and trailers, tow trucks and agricultural trailers. These are: NEON rear position light (2,2/5,5 W), brake light (2,8/3,6 W), reversing light (2,2/6,4 W), fog light (4,8/5,5 W), rear direction indicator (1,7/2,4 W), number plate light (0,5/1,2 W) and reflective triangle.

The lamp is made of high-quality materials with appropriate resistance to impact damage. The aspect of protection against the water-ingress, mud and dust is also important. In this case, STRADA lights offer a great IP 68 ingress protection rating. The wide permissible operating temperature range is from -30oC to +50oC. The lamp has the required European E9 homologation and is approved for use.

The multifunction lamp STRADA is a product of new aesthetic and necessary functional values, which thanks to the use of prime quality materials, will ensure a long service life.

Technical data

Light group
HOR 124
LED quantity
71
Light category
multifunction rear
Rear position light
yes
Supply voltage
12/24 V
Number plate light
yes
Reflecting device
yes
Operating temperature range
from -30°C to +50°C
Cable
7×0,5 mm2; cable length 2 m
Side
right
Reversing light
yes
Fog light
yes
Brake light
yes
Rear direction indicator
yes
LED light
yes
Ingress protection rating
IP 68

Download

Rear multifunction light STRADA LZD 2821 (technical drawing) (rear-multifunction-light-strada-lzd-2821-technical-drawing-2.ZIP)
Download
Multifunction light STRADA LZD 2821 (drawing R150) (multifunction-light-strada-lzd-2821-drawing-r150.ZIP)
Download
Multifunction light STRADA LZD 2821 (technical data R148) (multifunction-light-strada-lzd-2821-technical-data-r148.ZIP)
Download
Multifunction light STRADA LZD 2821 (technical data R150) (multifunction-light-strada-lzd-2821-technical-data-r150.ZIP)
Download
Multifunction light STRADA LZD 2821 (approval documentation R10) (multifunction-light-strada-lzd-2821-approval-documentation-r10.ZIP)
Download
Multifunction light STRADA LZD 2821 (approval R10) (multifunction-light-strada-lzd-2821-approval-r10.ZIP)
Download
Multifunction light STRADA LZD 2821 (approval R148) (multifunction-light-strada-lzd-2821-approval-r148.ZIP)
Download
Multifunction light STRADA LZD 2821 (approval R150) (multifunction-light-strada-lzd-2821-approval-r150.ZIP)
Download
Multifunction light STRADA LZD 2821 (drawing R148) (multifunction-light-strada-lzd-2821-drawing-r148.ZIP)
Download
Page content (lzd-2821.ZIP)
