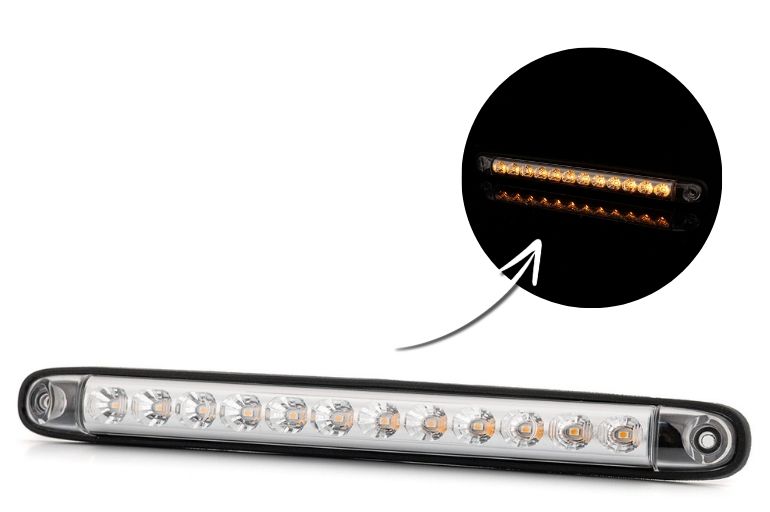

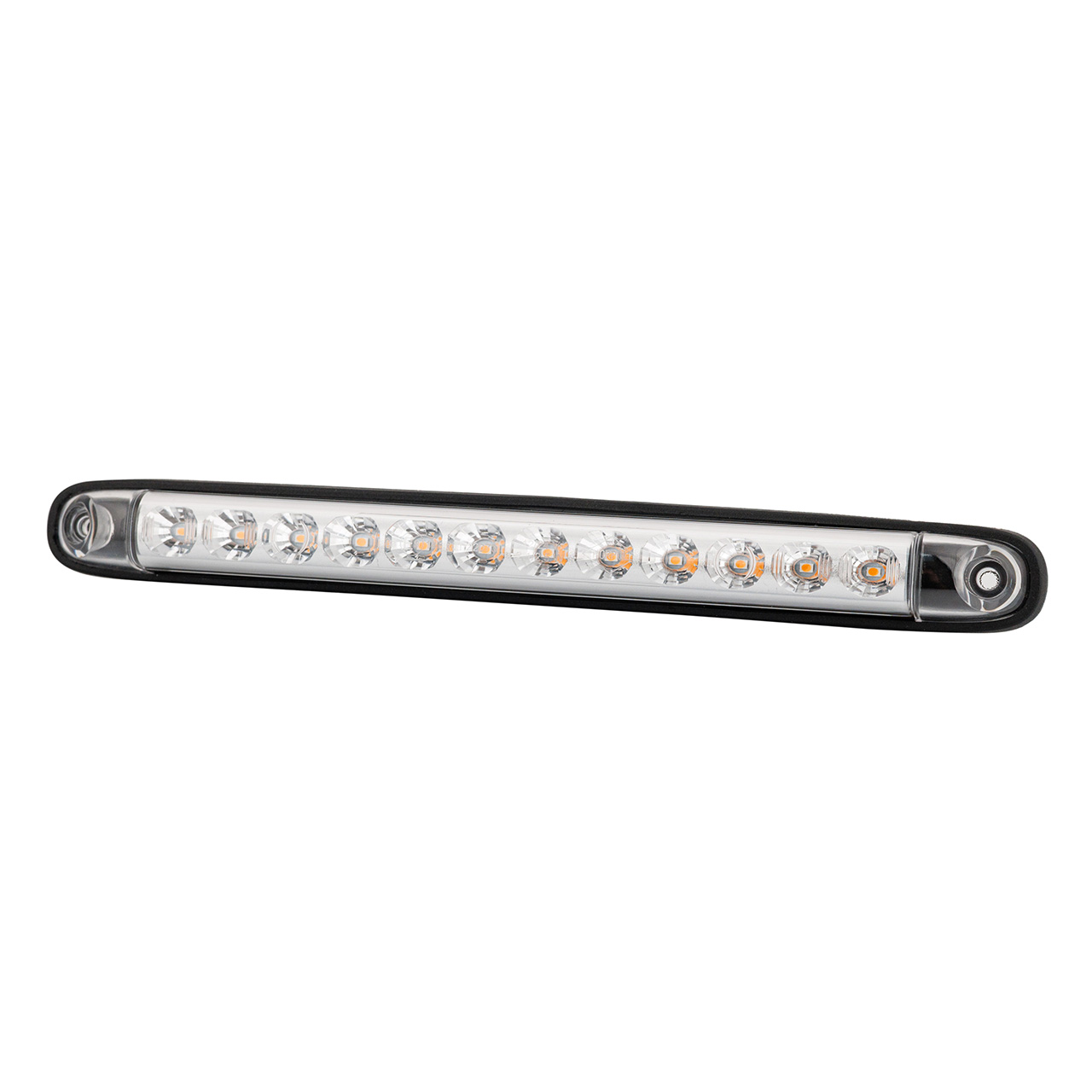

LKD 2249/ST
Rear static direction indicator

Reliability, safety, and versatility in one solution.

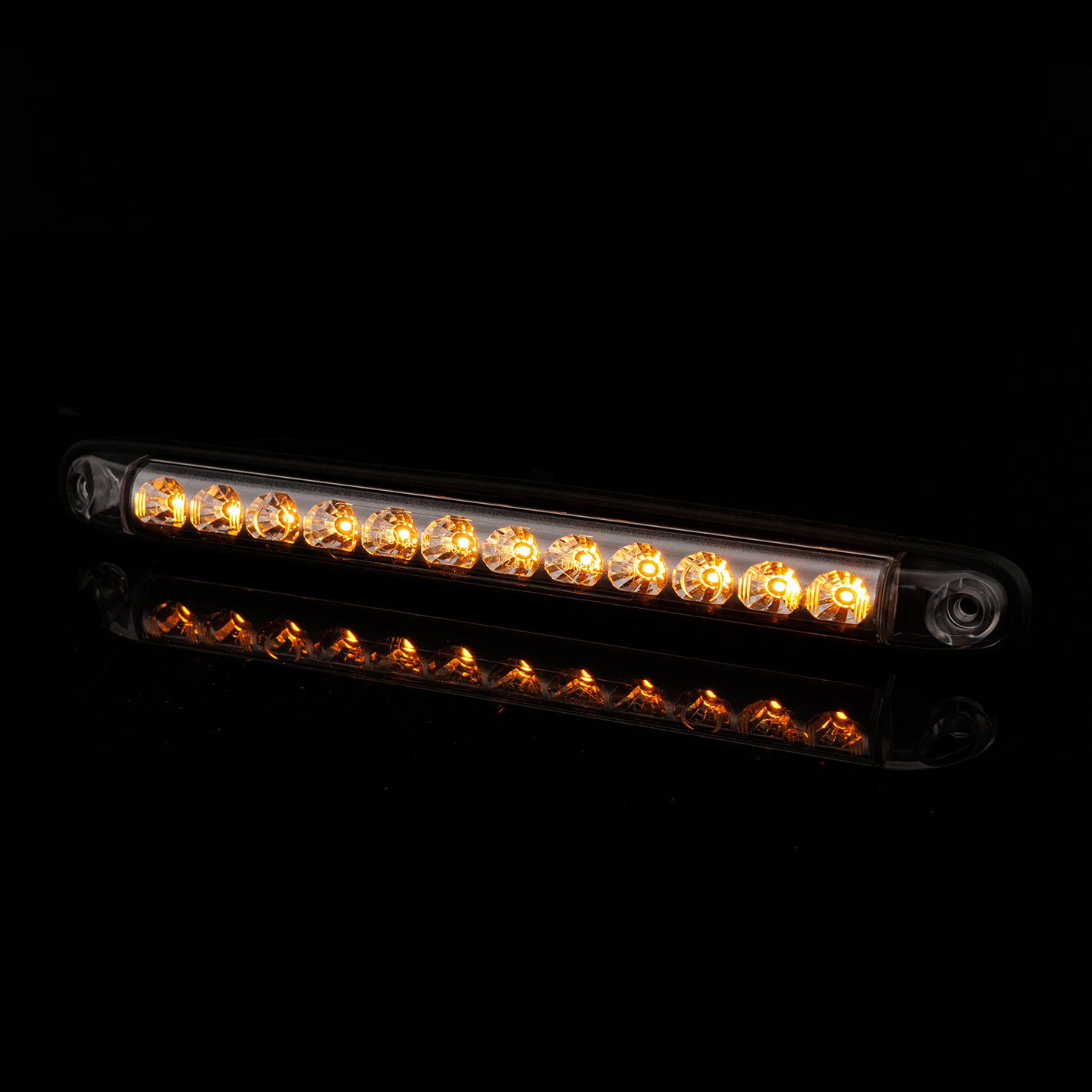

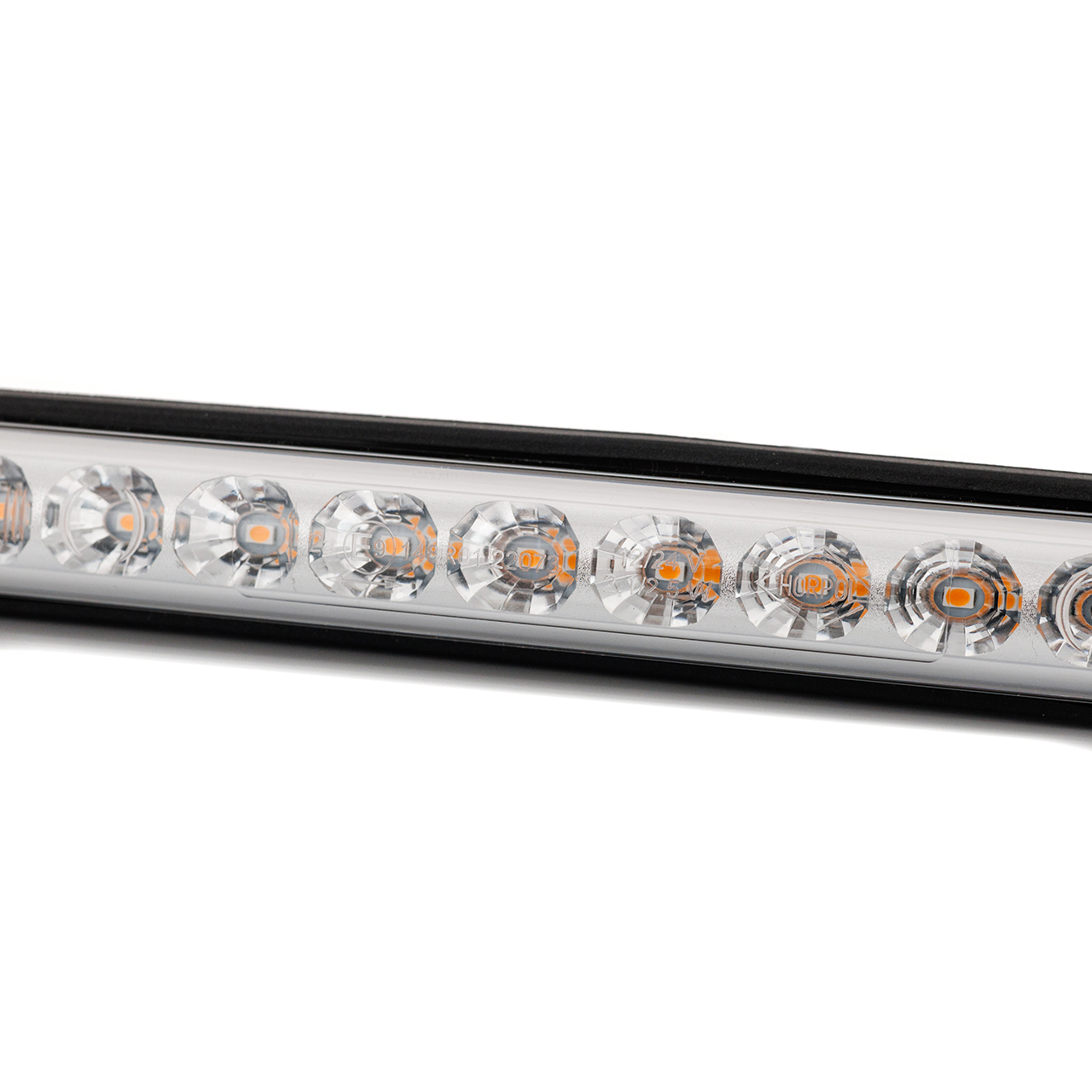

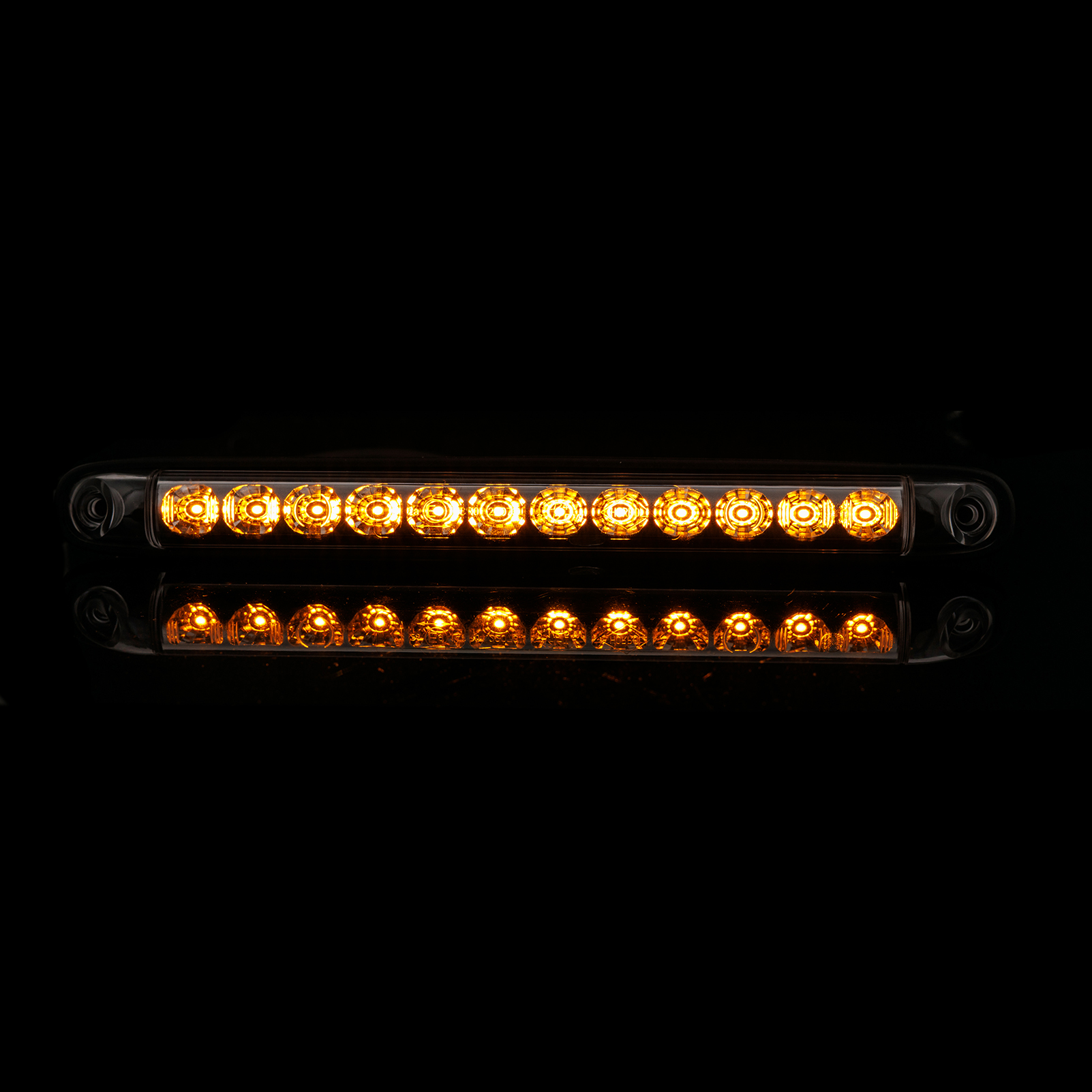

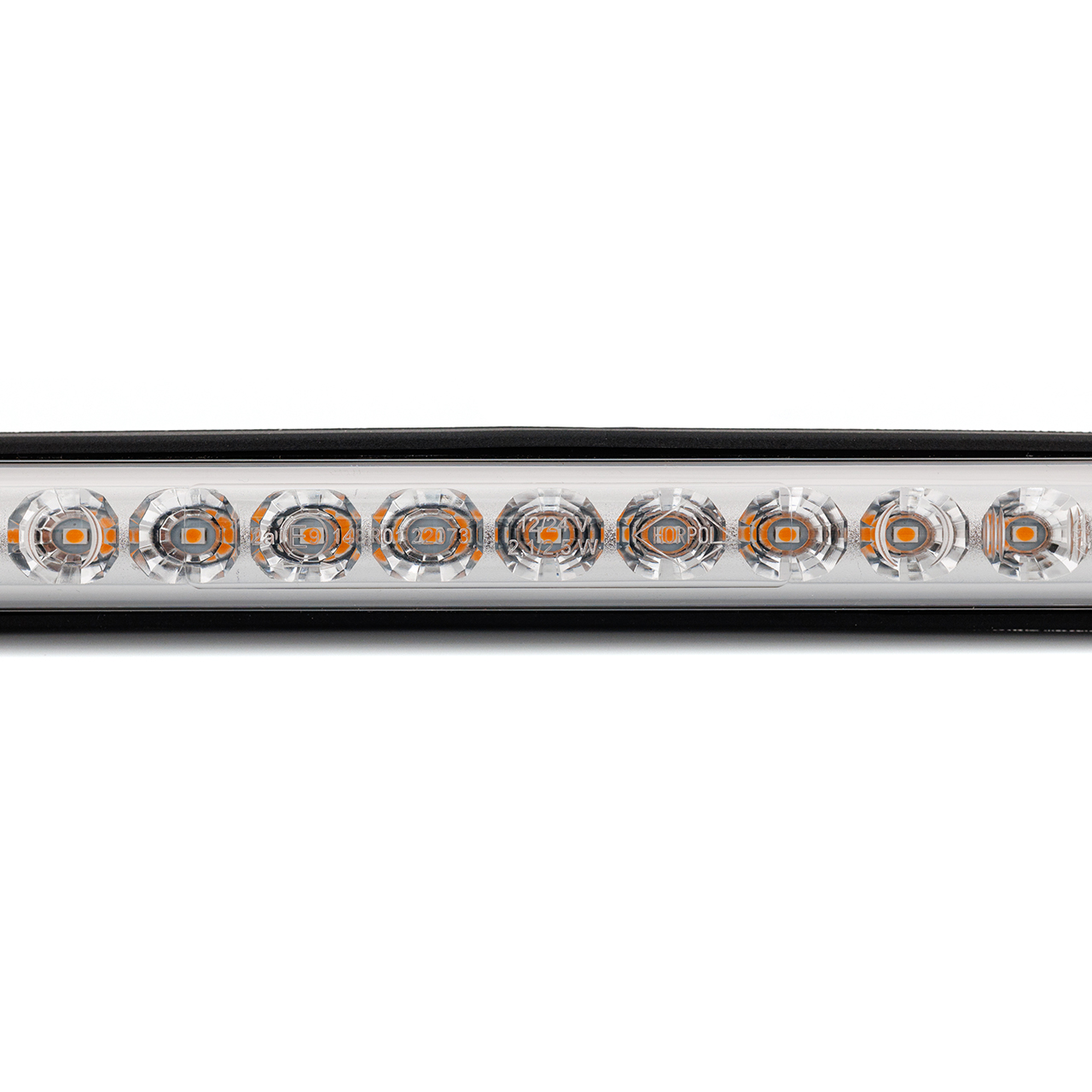

The LKD 2249/ST model is a high-quality static LED rear indicator, designed with maximum functionality and durability in mind. Equipped with 12 efficient LEDs, the lamp delivers a clear light signal that enhances vehicle visibility and road safety – both day and night, in all weather conditions.

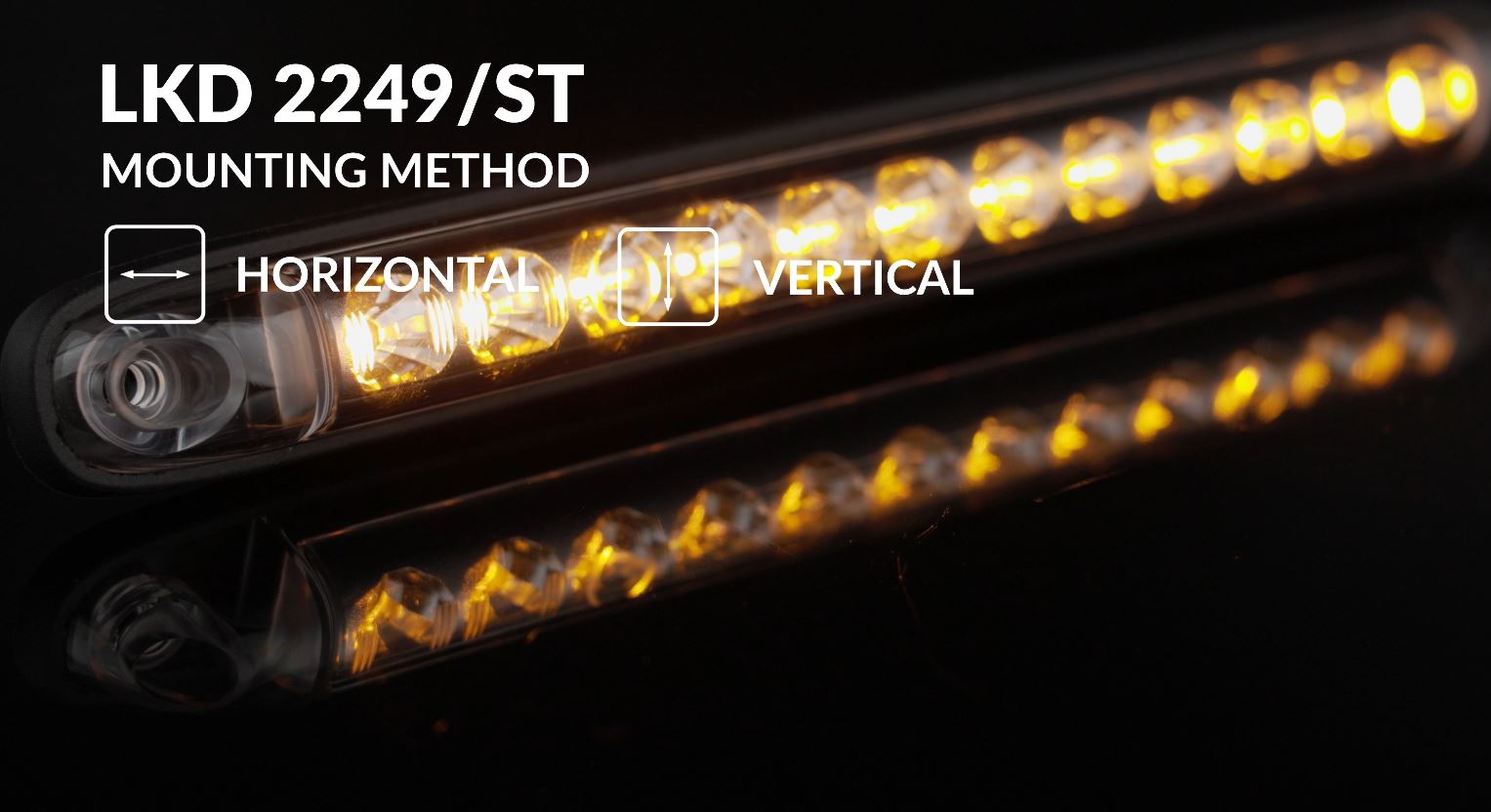

Its IP 68-rated housing ensures complete resistance to dust and water, making it ideal for use in harsh environments, including road transport, agriculture, and industry. The lamp operates reliably across a wide temperature range and features a universal design that allows for horizontal or vertical mounting on either side of the vehicle.

Thanks to its low rated power consumption (2,1/2,5 W), the lamp is highly energy-efficient, helping extend the lifespan of electrical systems. The 12/24 V power supply makes it compatible with most vehicles available on the market.

Applications:
Perfect for trucks, construction and agricultural machinery, and all utility vehicles requiring durable directional lighting.

Choose quality and safety – equip your vehicle with the LKD 2249/ST!

Technical data

Light group
HOR 86E
LED quantity
12
Light category
direction indicator
Supply voltage
12/24 V
Light colour
amber
Power rating
2,1/2,5 W
Operating temperature range
from -30°C to +50°C
Cable
2x0,75 mm2; cable length 1 m
Side
universal
Rear direction indicator
yes
LED light
yes
Ingress protection rating
IP 68

Download

Static rear direction indicator LKD 2249_ST (approvals) (static-rear-direction-indicator-lkd-2249_st-approvals.ZIP)
Download

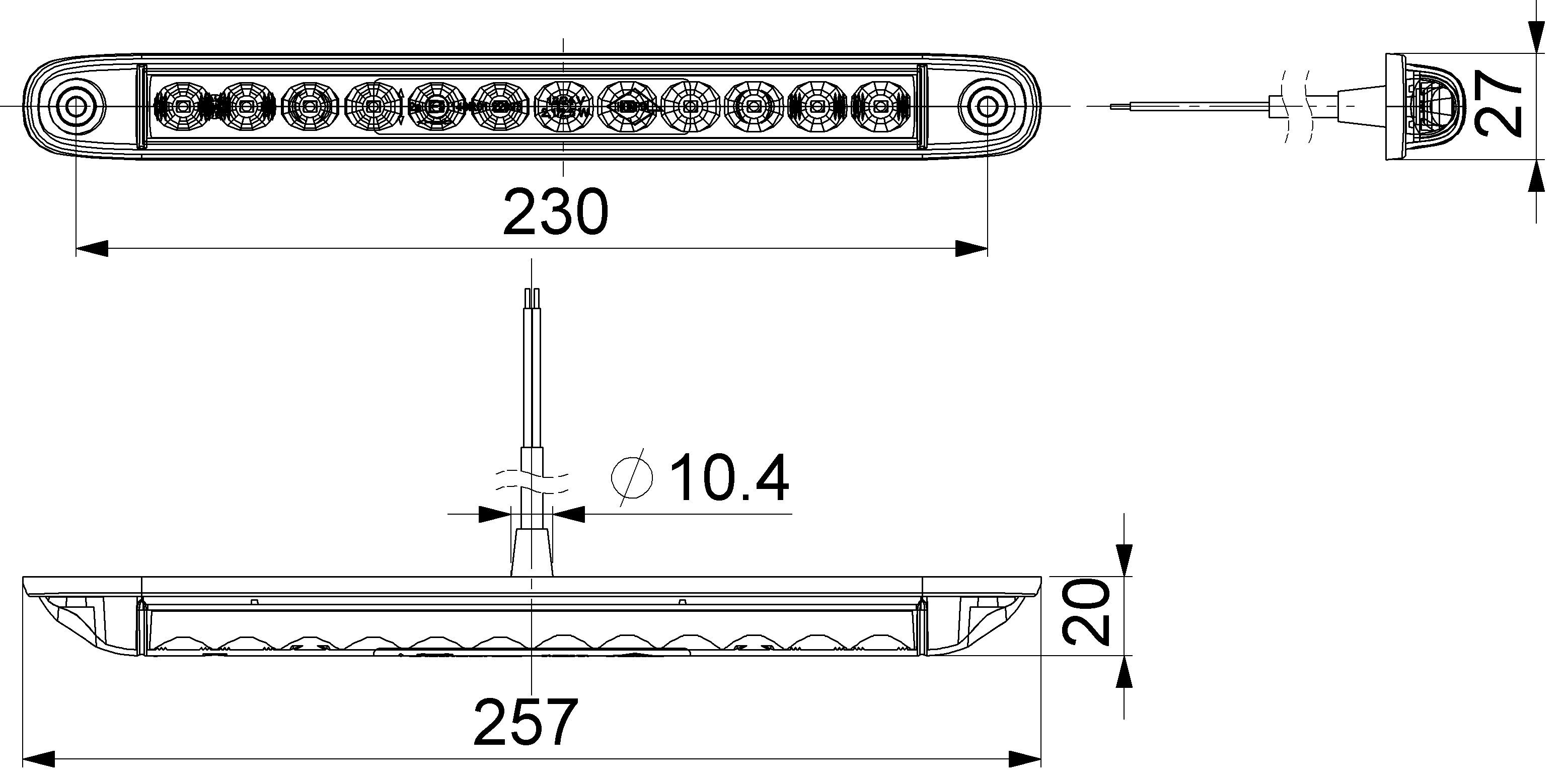

Static rear direction indicator LKD 2249_ST (technical drawings) (static-rear-direction-indicator-lkd-2249_st-technical-drawings.ZIP)
Download
Page content (lkd-2249-st.ZIP)
