LRD 3042/Y-AM
Work light (6500 K)

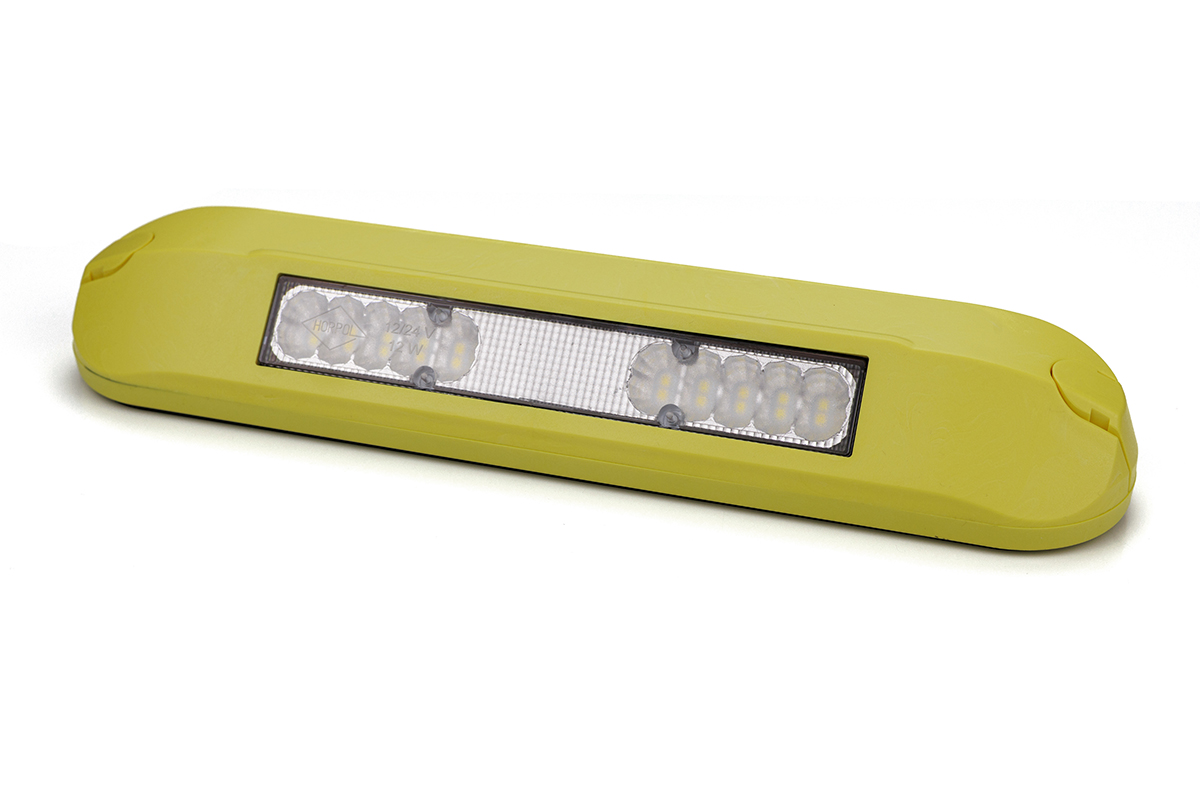

LED Work lamp LRD 3042/Y-AM – reliability in every situation.

The Horpol LRD 3042/Y-AM model has been designed specifically for emergency vehicles, ambulances, and rescue units, where dependable work area lighting is essential.

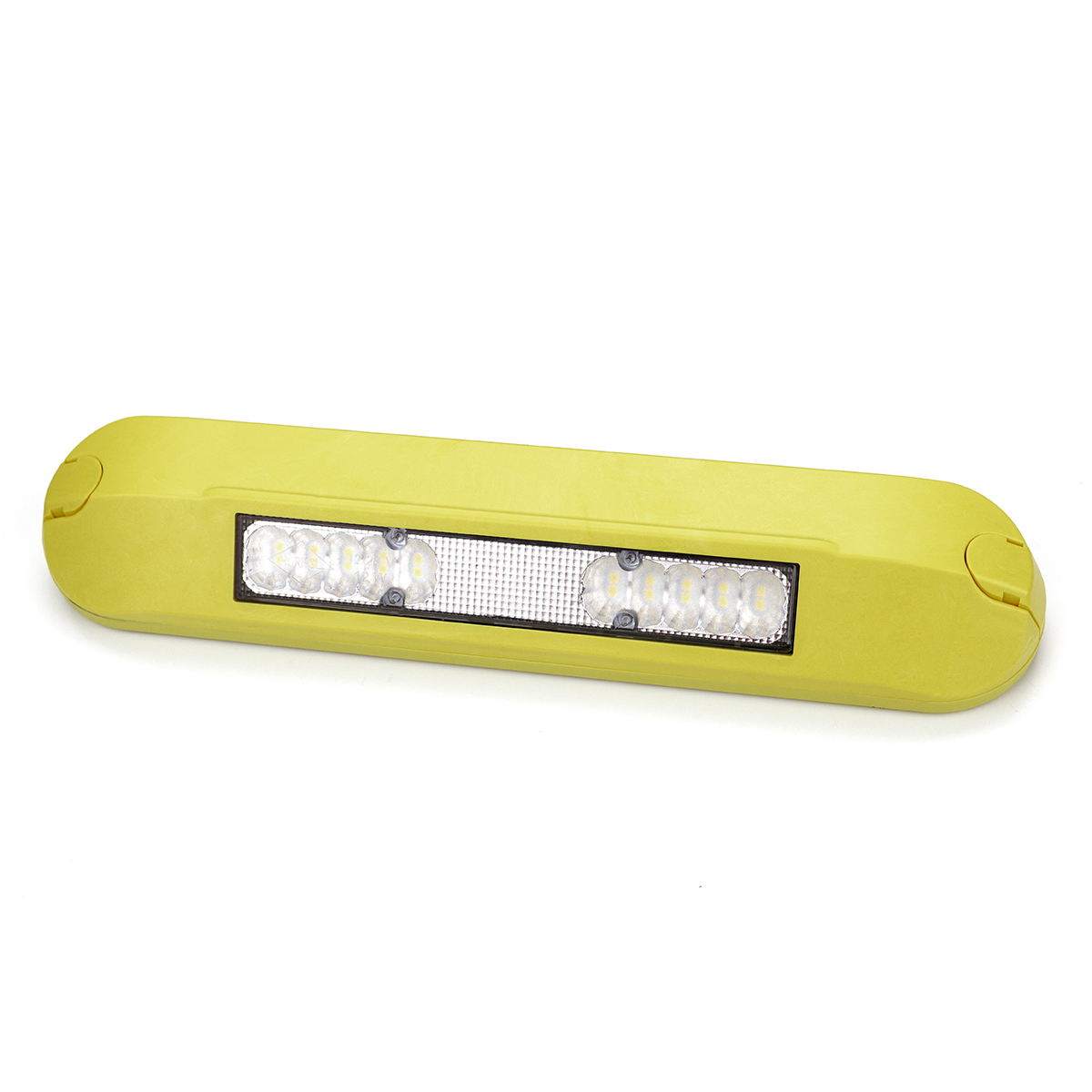

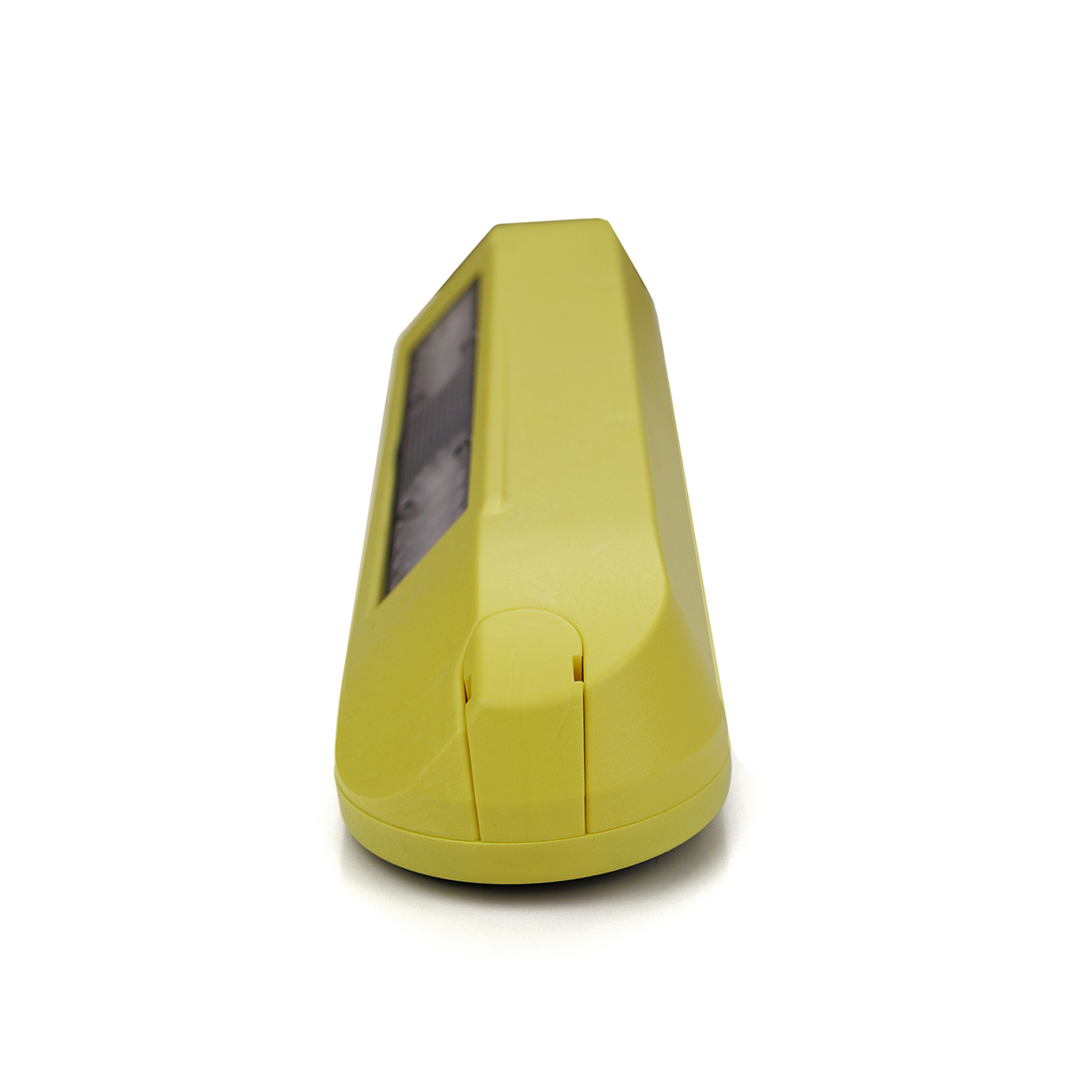

Its compact housing in RAL 1016 features a slim, aerodynamic profile that integrates seamlessly with flat vehicle surfaces. Built from durable materials, the lamp offers full resistance to shocks, extreme temperatures, and moisture, as confirmed by its high IP 68 protection rating.

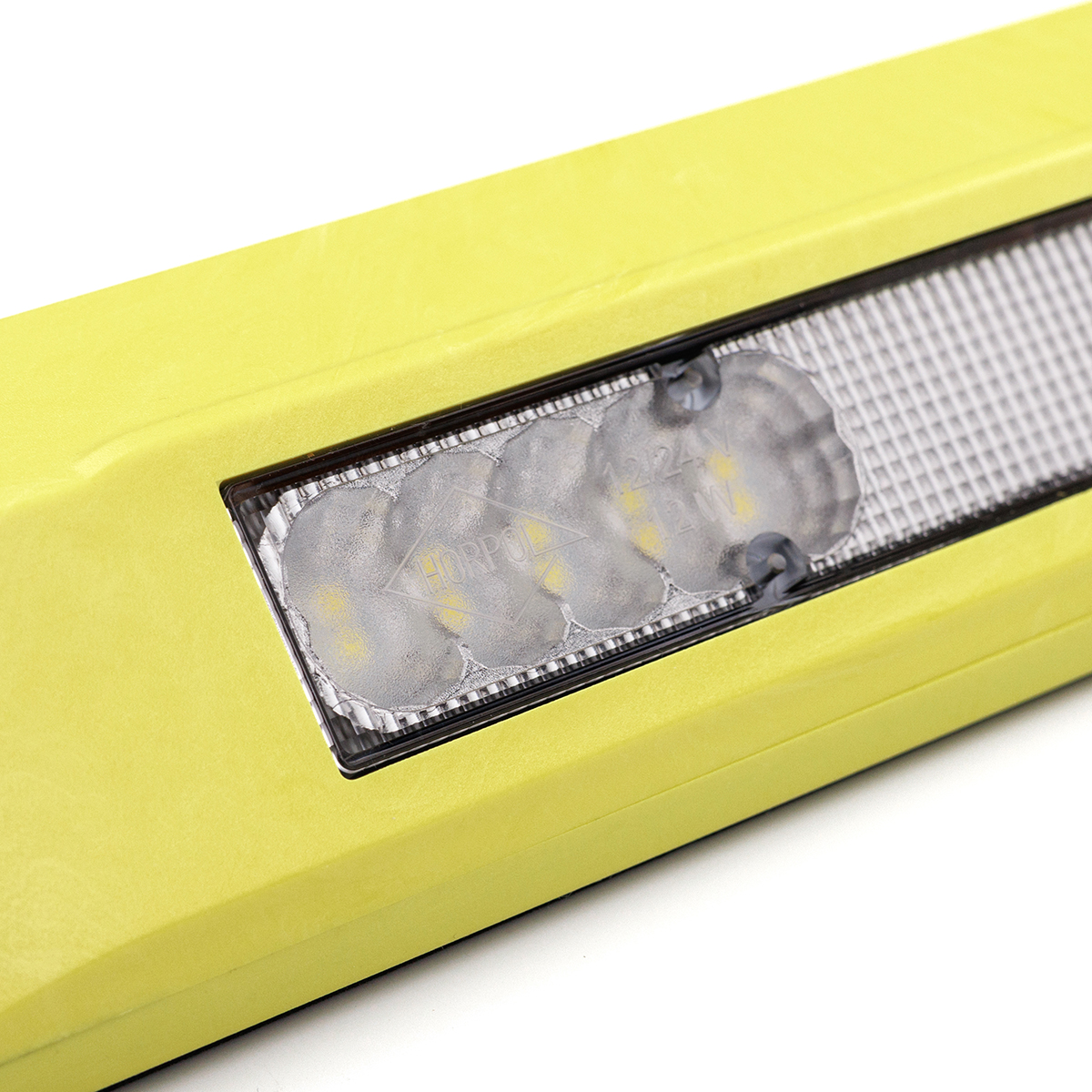

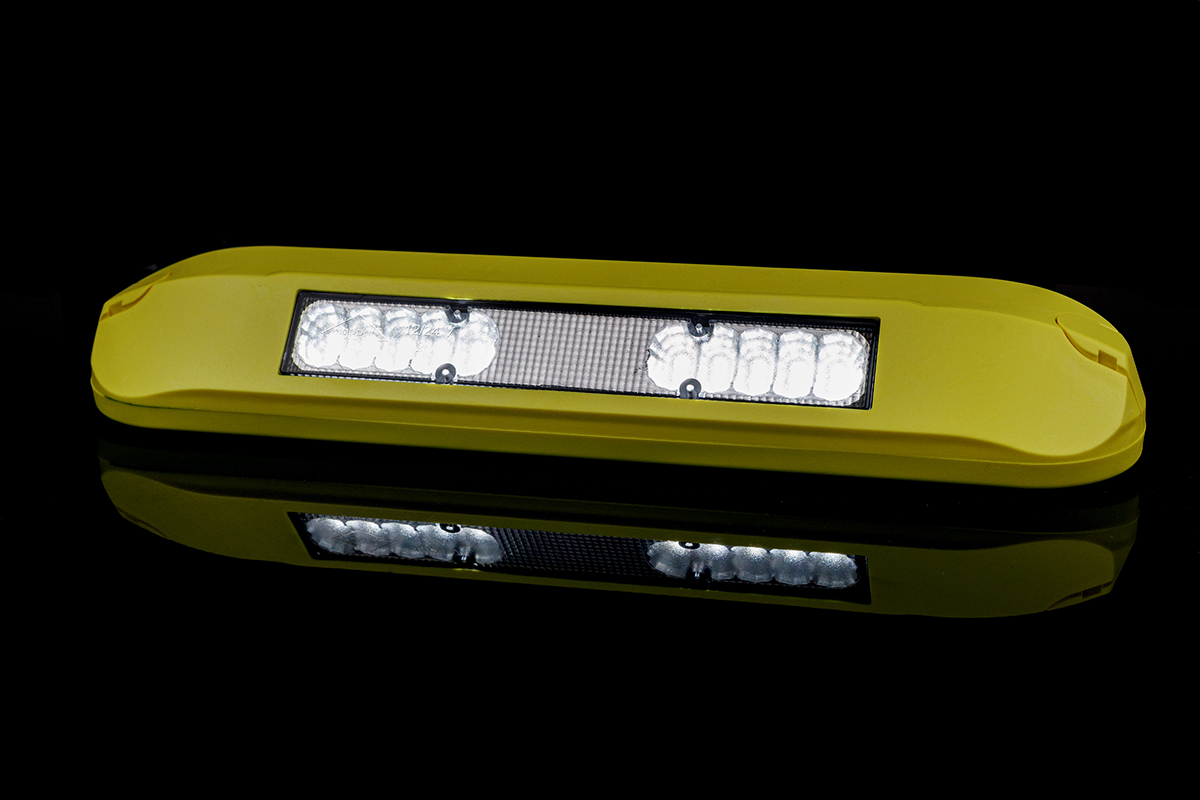

The light source consists of 20 LEDs emitting a cool white 6500 K color temperature. They produce a uniformly diffused light output of 1000 lm, ensuring wide and bright illumination around the vehicle. The rectangular shape of the fixture further enhances lighting efficiency.

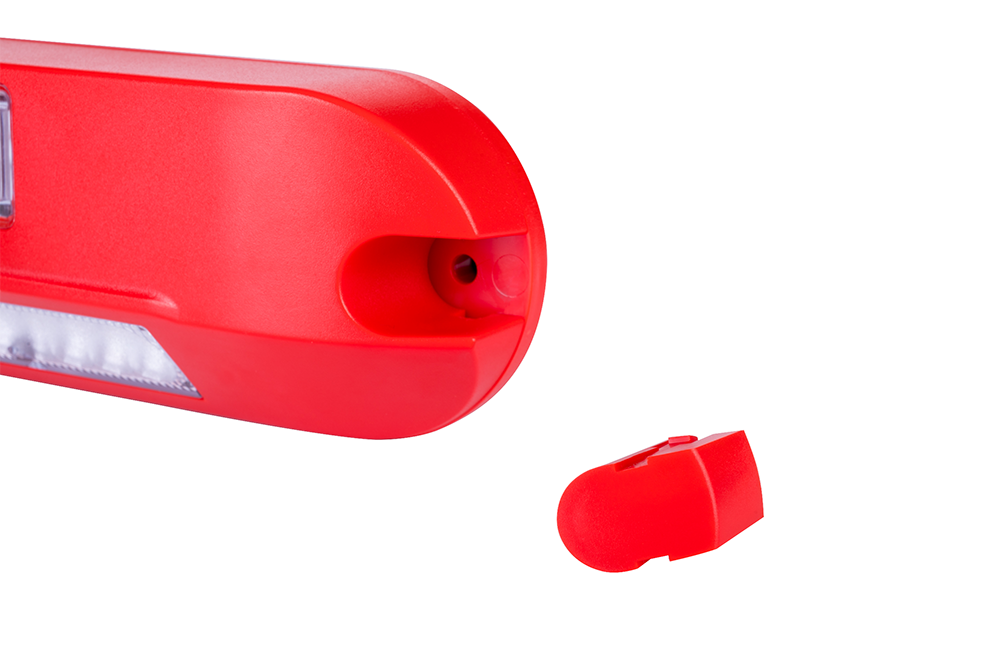

For easy installation and a refined look, the lamp comes with a mounting gasket and screw covers.

Importantly, the device is completely safe for vehicle electronics – EMC certification guarantees no electromagnetic interference and full compatibility with other onboard systems.

Technical data

Dispersed light
yes
Light group
HOR 137
LED quantity
20
Light category
working light
Supply voltage
12/24 V
Light colour
white
Power rating
12 W
Operating temperature range
from -30°C to +50°C

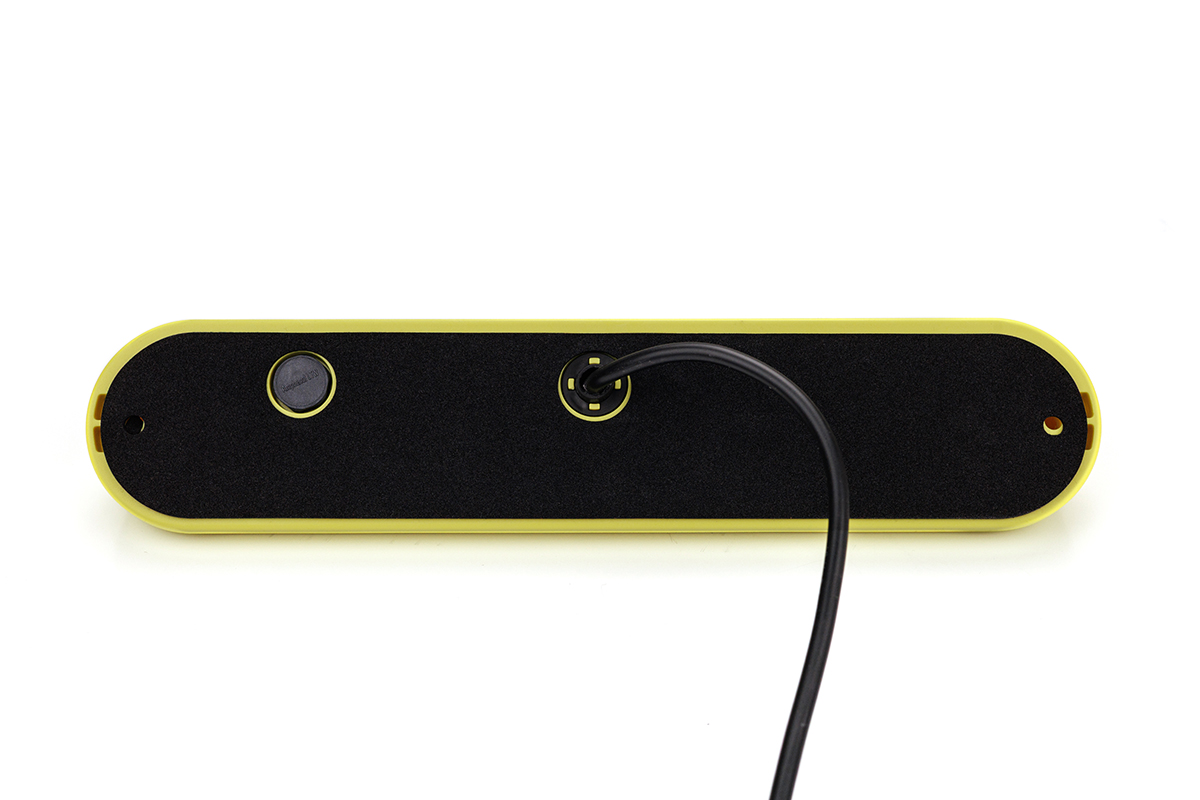

Cable
2×0,75 mm2; cable length 0,5 m
Side
universal
Colour temperature
6500 K
Luminous flux
1000 lm
LED light
yes
Ingress protection rating
IP 68

Download

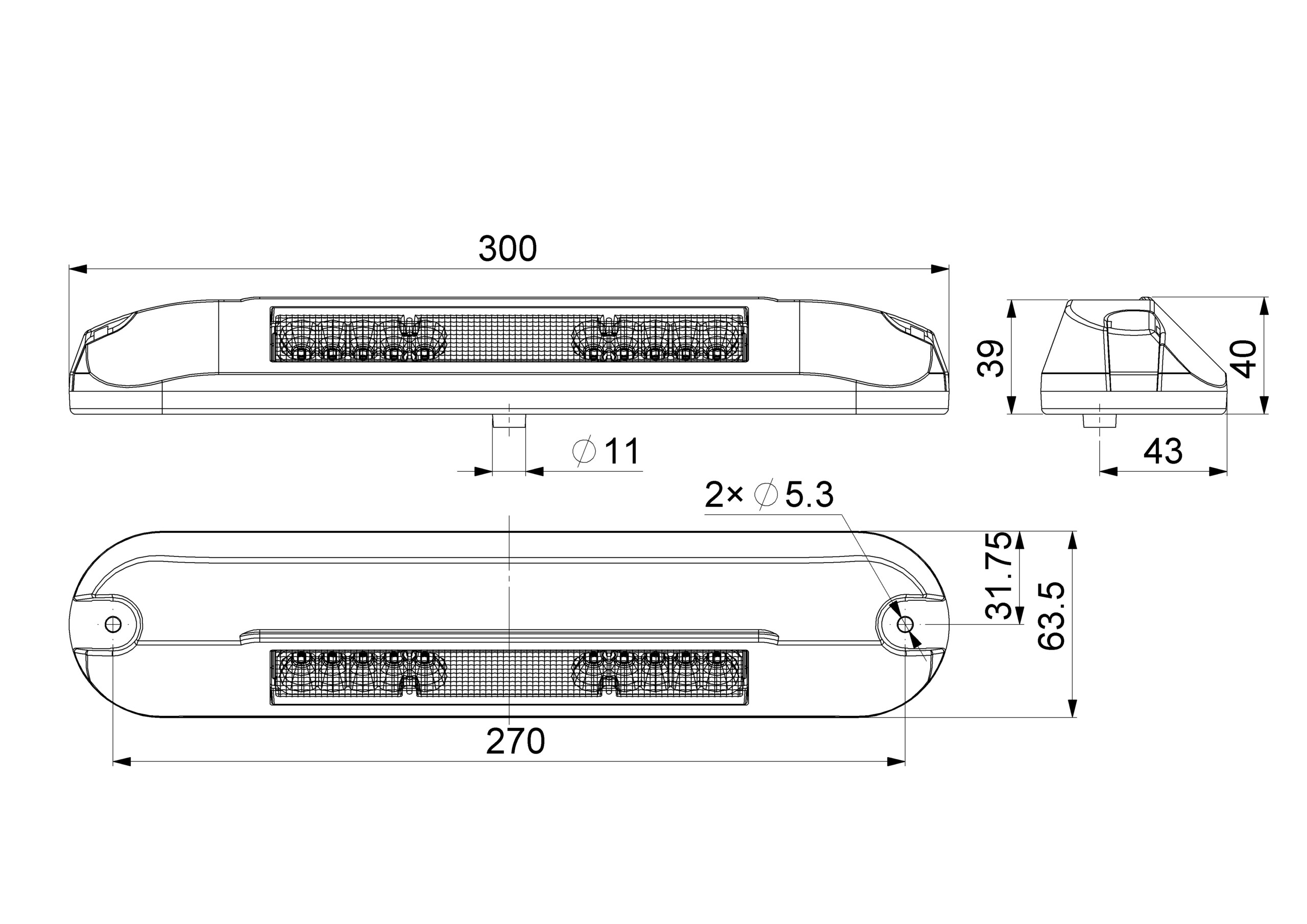

Work light HOR 137 (technical drawings) (work-light-hor-137-technical-drawings.ZIP)
Download

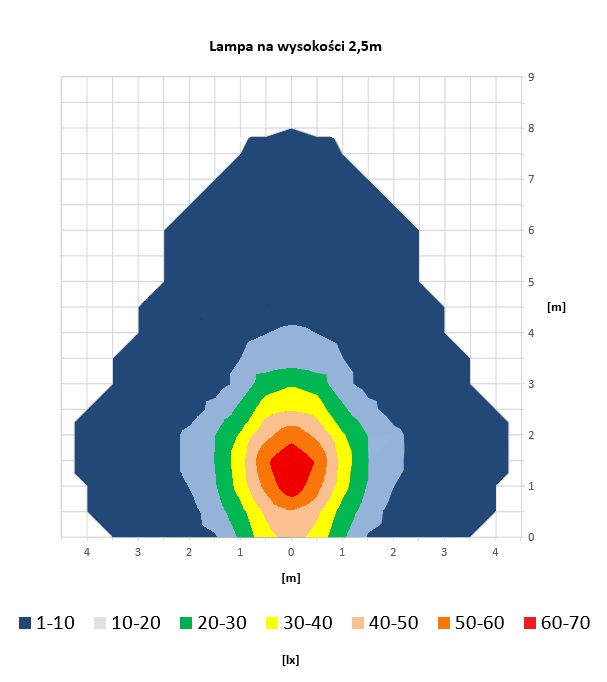

Light intensity HOR 137 (light-intensity-hor-137-20.ZIP)
Download
Page content (lrd-3042-y-am.ZIP)
