LRD 3187

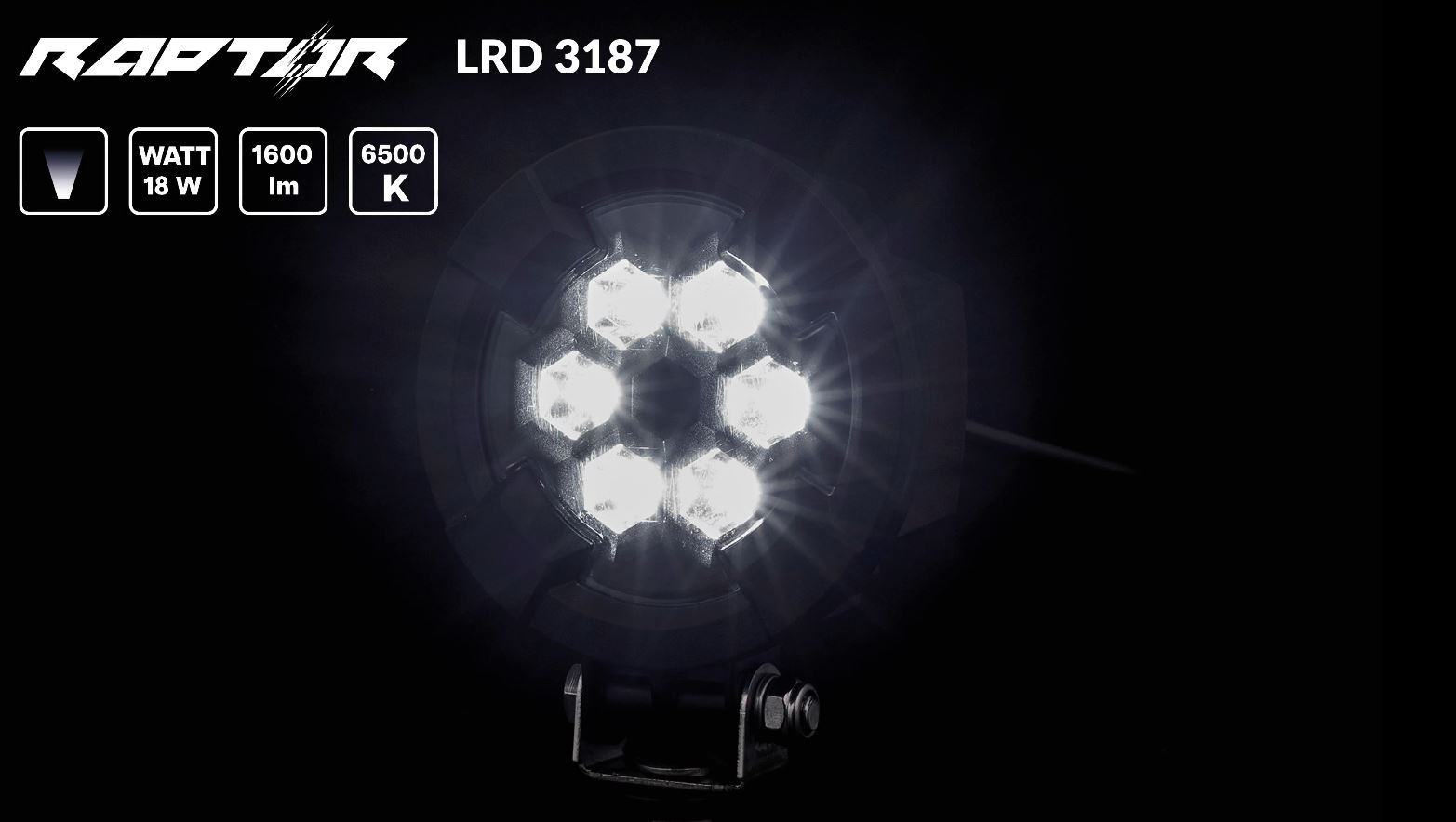

Work light RAPTOR (focused light, 1600 lm)

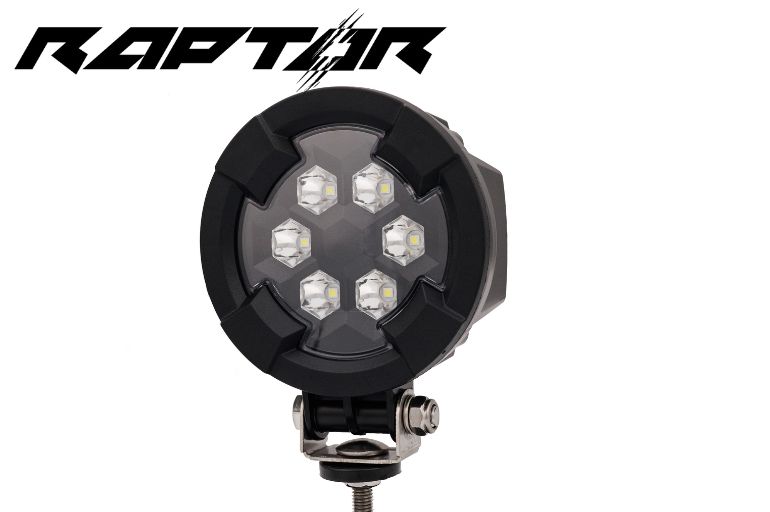

LRD 3187 RAPTOR – a professional work light for demanding conditions.

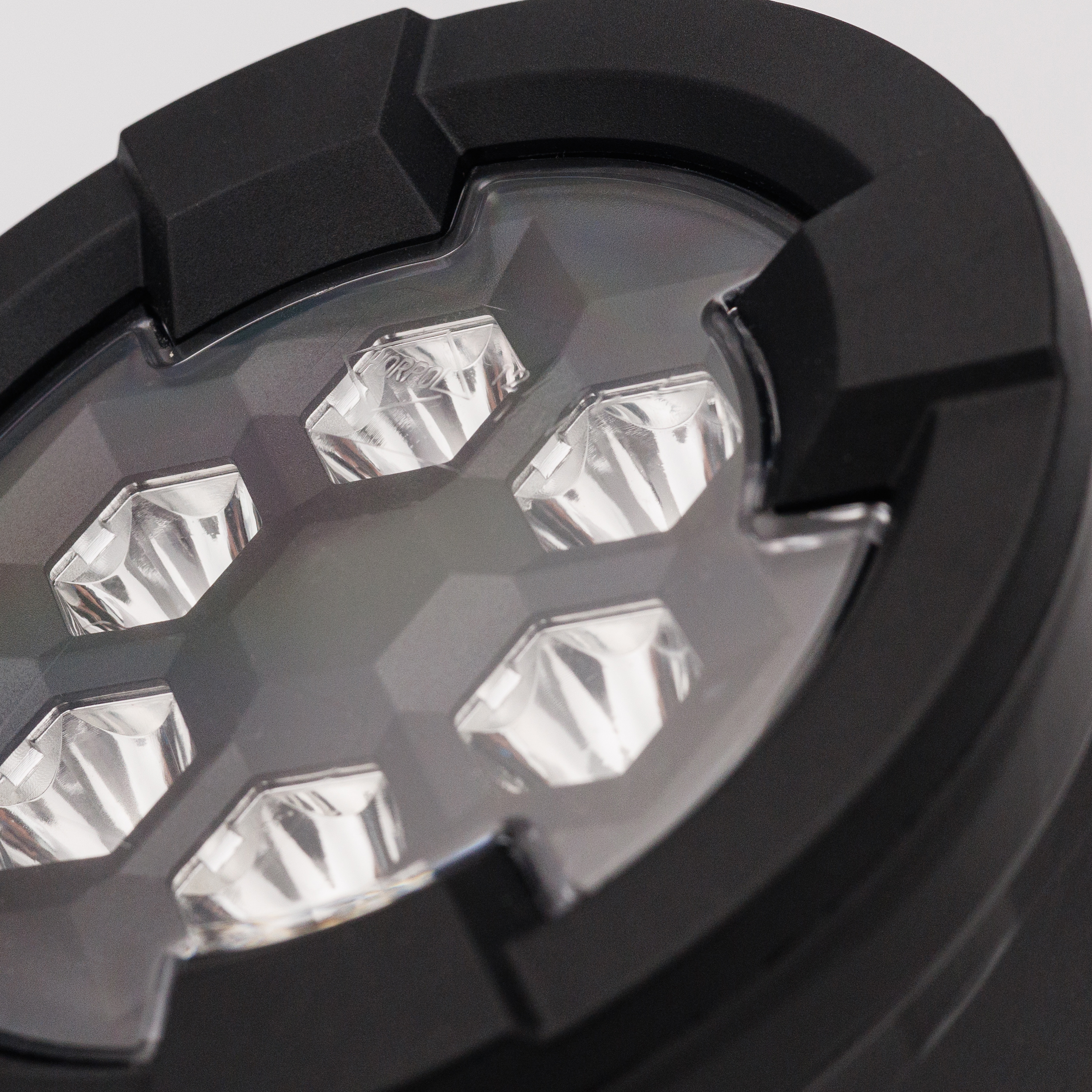

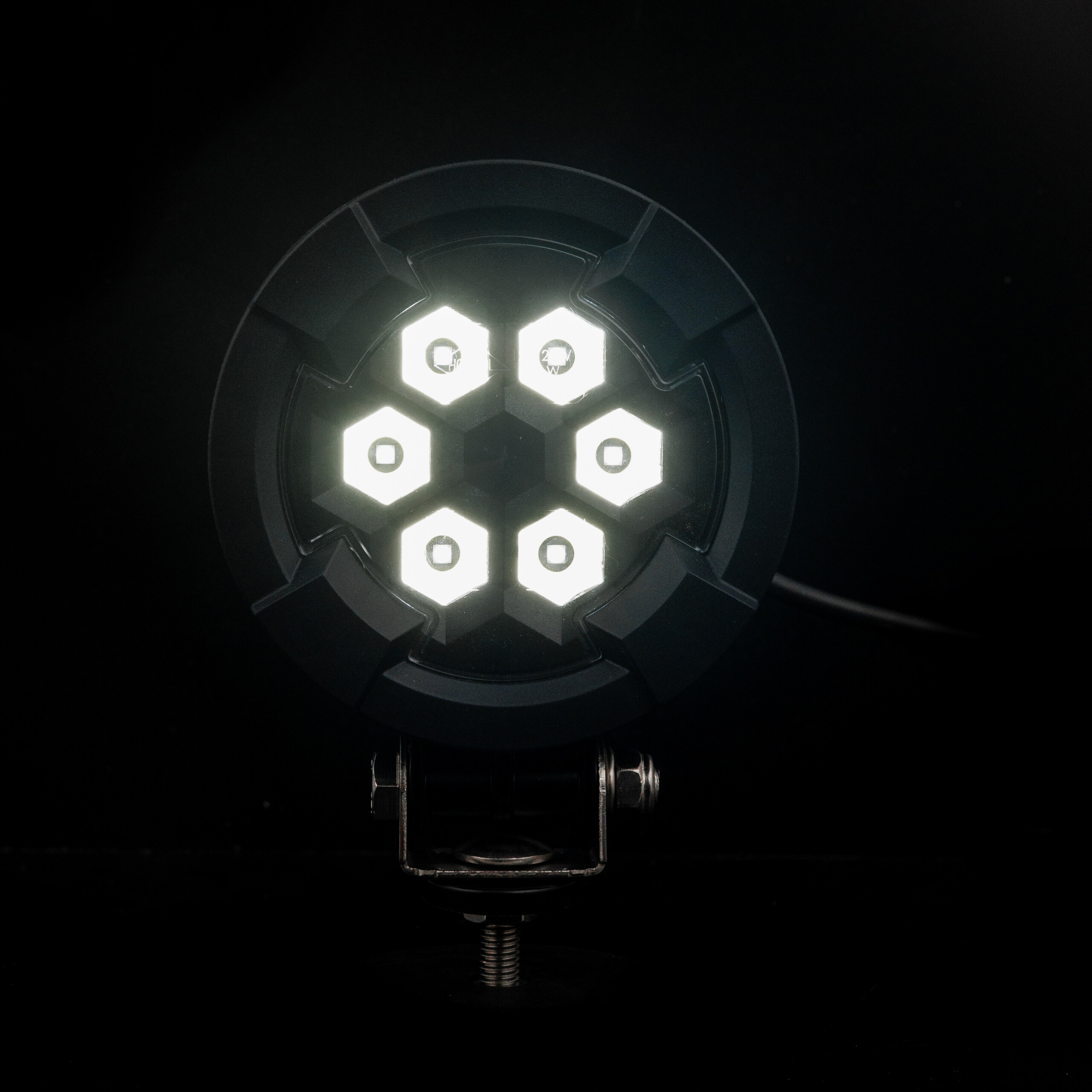

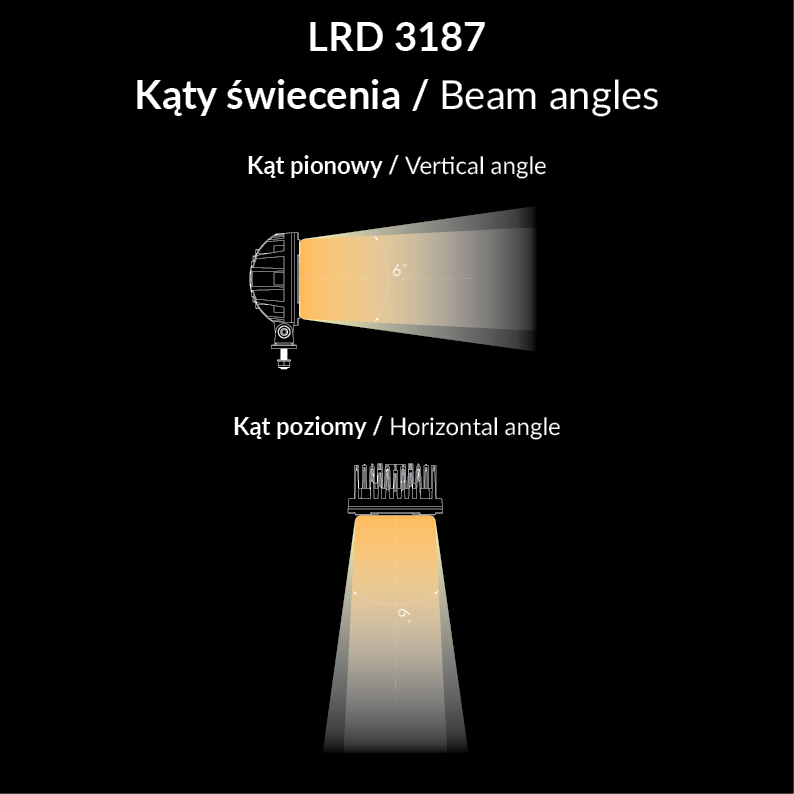

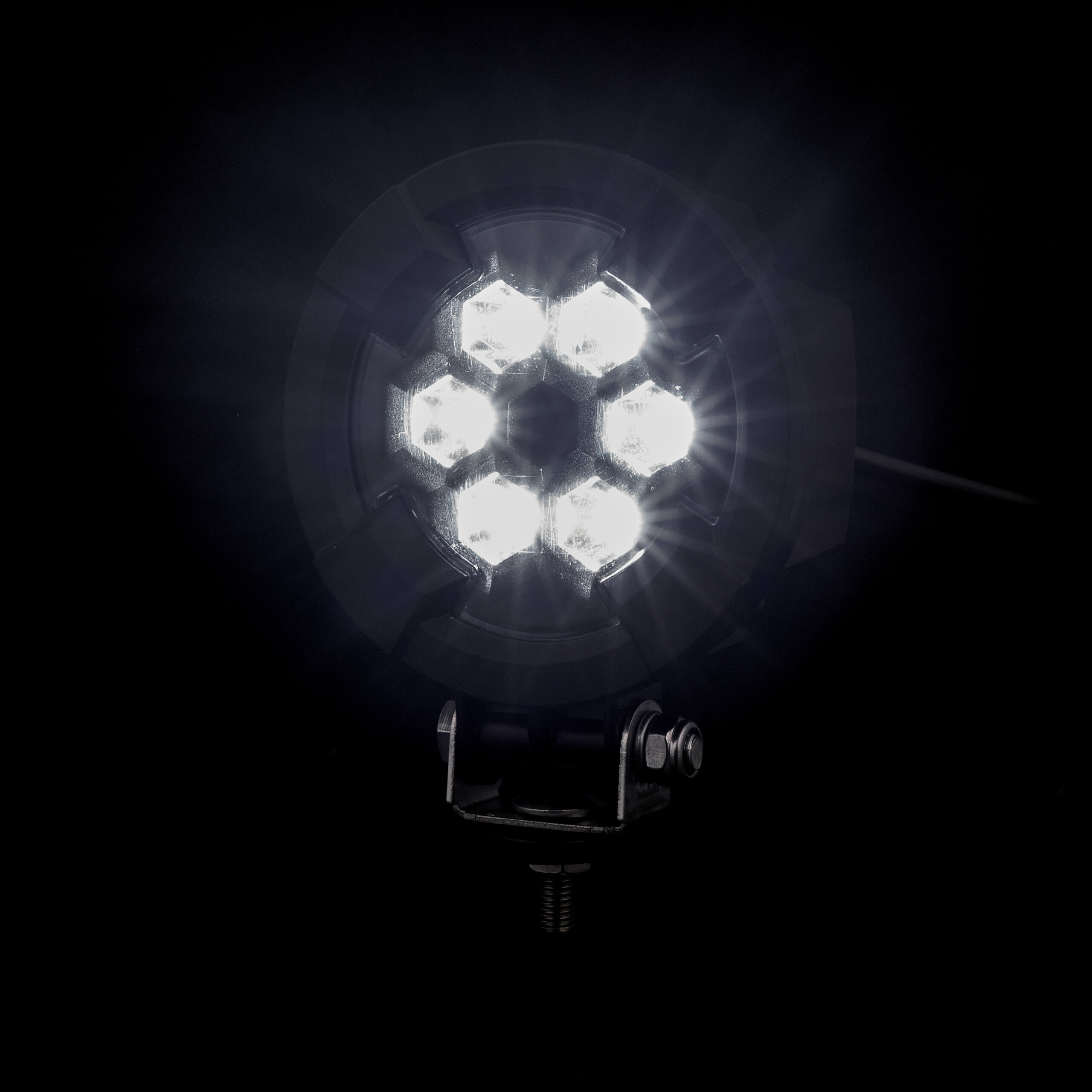

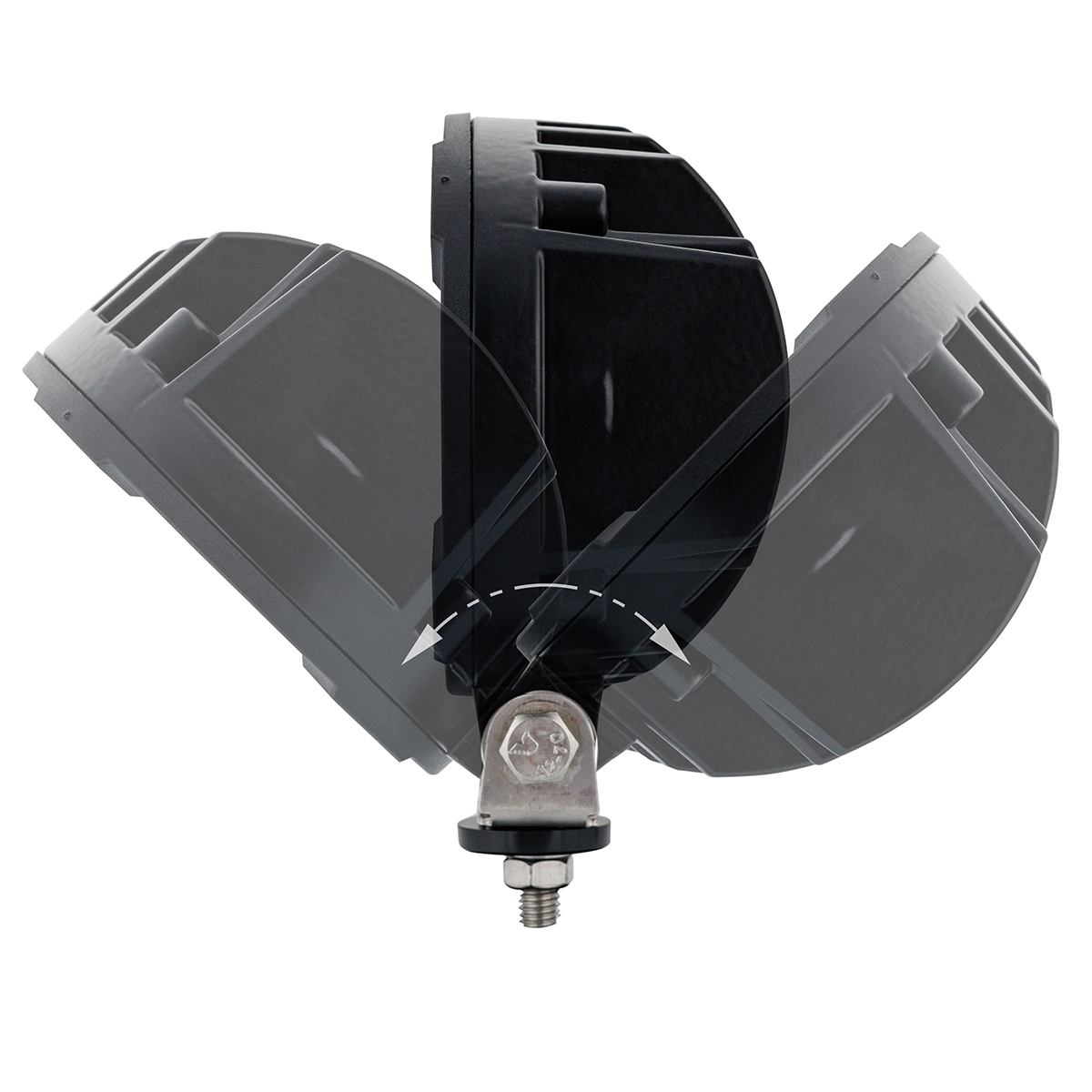

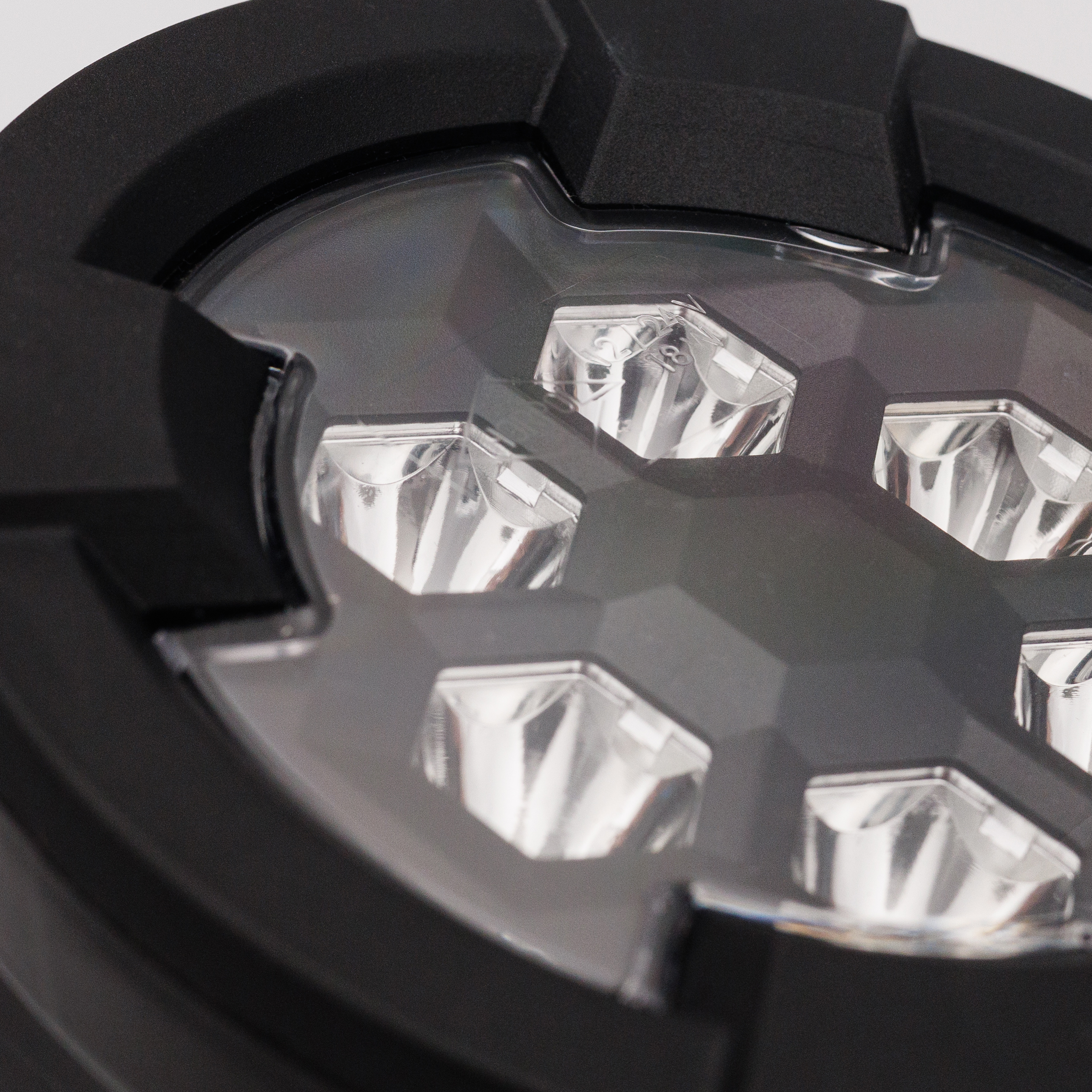

The LRD 3187 RAPTOR is a reliable light source designed for field work where efficiency, durability, and safety are essential. Equipped with 6 high-performance LED diodes with a power of 18 W, it generates a 1600 lm light output in a cool 6500 K colour temperature, providing bright and comfortable illumination of the work area after dark. The lamp’s round design with a black grille ensures a focused light beam that effectively illuminates the working space while minimizing the risk of glare for the operator. The adjustable bracket allows precise setting of the light angle depending on the needs and nature of the tasks being performed.

The RAPTOR LRD 3187 offers versatile mounting options – it can be installed on either side of the vehicle, and its compatibility with 12 V and 24 V power systems makes it suitable for a wide range of vehicles and machinery.

Description

The robust housing is designed for long-term use in harsh environments. The aluminium heat sink effectively dissipates heat, while the pressure-equalizing membrane prevents condensation inside the lamp. The lens made of impact-resistant polycarbonate increases the device’s durability and mechanical resistance.

The lamp meets the IP 68 sealing standard, ensuring full resistance to dust and moisture as well as reliable operation across a wide temperature range – from –30°C to +50°C. The R10 approval confirms compliance with electromagnetic standards, guaranteeing no interference with other onboard vehicle devices.

Ideal applications in vehicles:
– agricultural and construction machinery;
– trailers and semi-trailers;
– trucks and transport vehicles;
– recovery trucks and roadside assistance vehicles;
– service and specialist vehicles.

Technical data

Focused light
yes
Light group
HOR 156
LED quantity
6
Light category
working light
Supply voltage
12/24 V
Light colour
white
Power rating
18 W
Operating temperature range
from -30°C to +50°C
Cable
2×0,75 mm2; cable length 1,5 m
Side
universal
Colour temperature
6500 K
Luminous flux
1600 lm
LED light
yes
Ingress protection rating
IP 68

Download

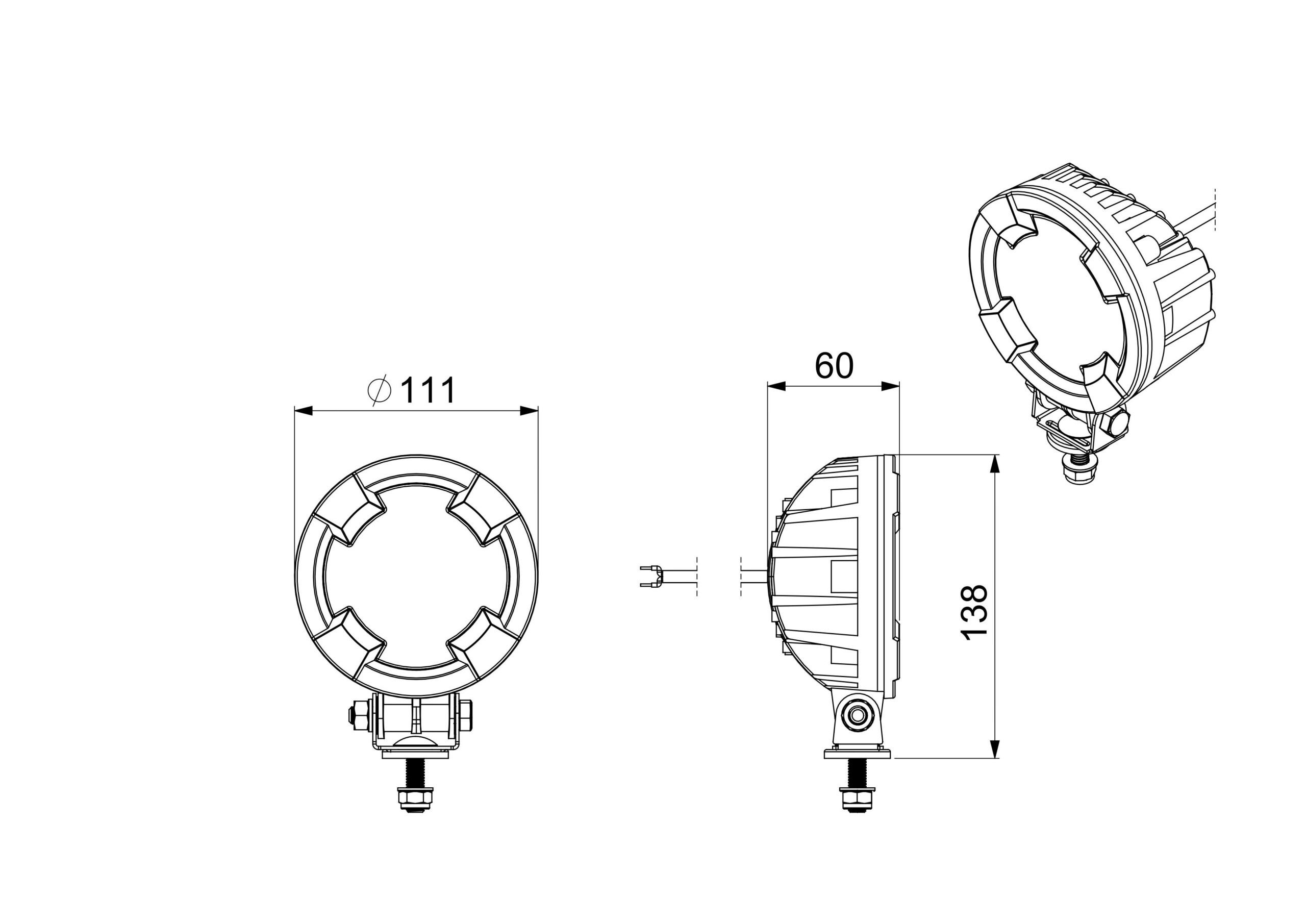

Work light HOR 156 (technical drawings) (work-light-hor-156-technical-drawings.ZIP)
Download
Page content (lrd-3187.ZIP)
