LD 2605
Marker lamp

Marker lamp white-red RIGHT, long arm, white and red lens, 0,5 m cable, neon version

Technical data

LED light
yes
Light category
marker
Light group
HOR 102B
Side
right
Supply voltage
12/24 V
Power rating
2/4 W
Ingress protection rating
IP 68
LED quantity
18
Front position light
yes
Rear position light
yes
Operating temperature range
from -30°C to +50°C

Download

Marker lamp LD 2605 (attachment) 1 (marker-lamp-ld-2605-attachment-1.ZIP)
Download
Marker lamp LD 2605 (homologation) 1 (marker-lamp-ld-2605-homologation-1.ZIP)
Download

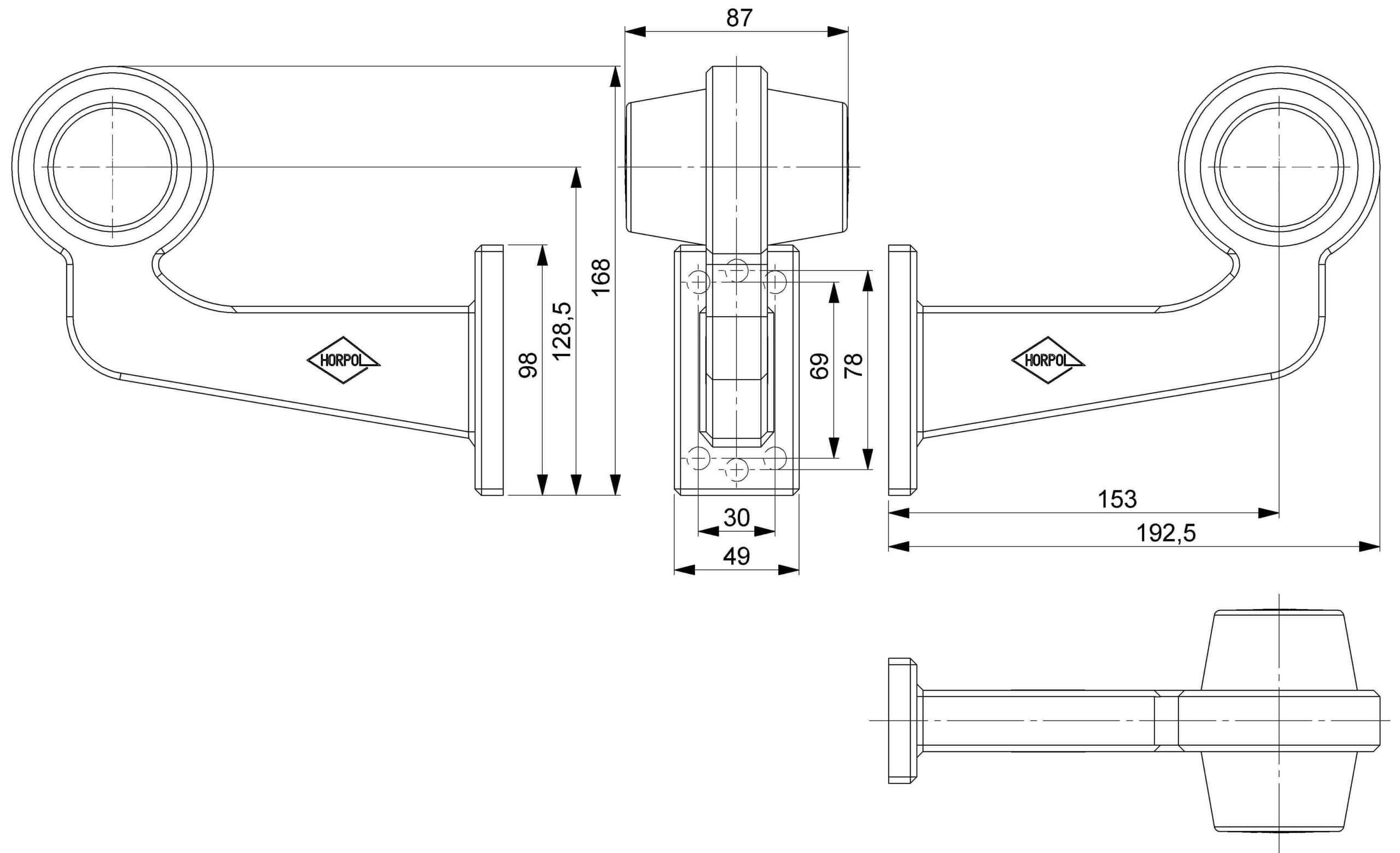

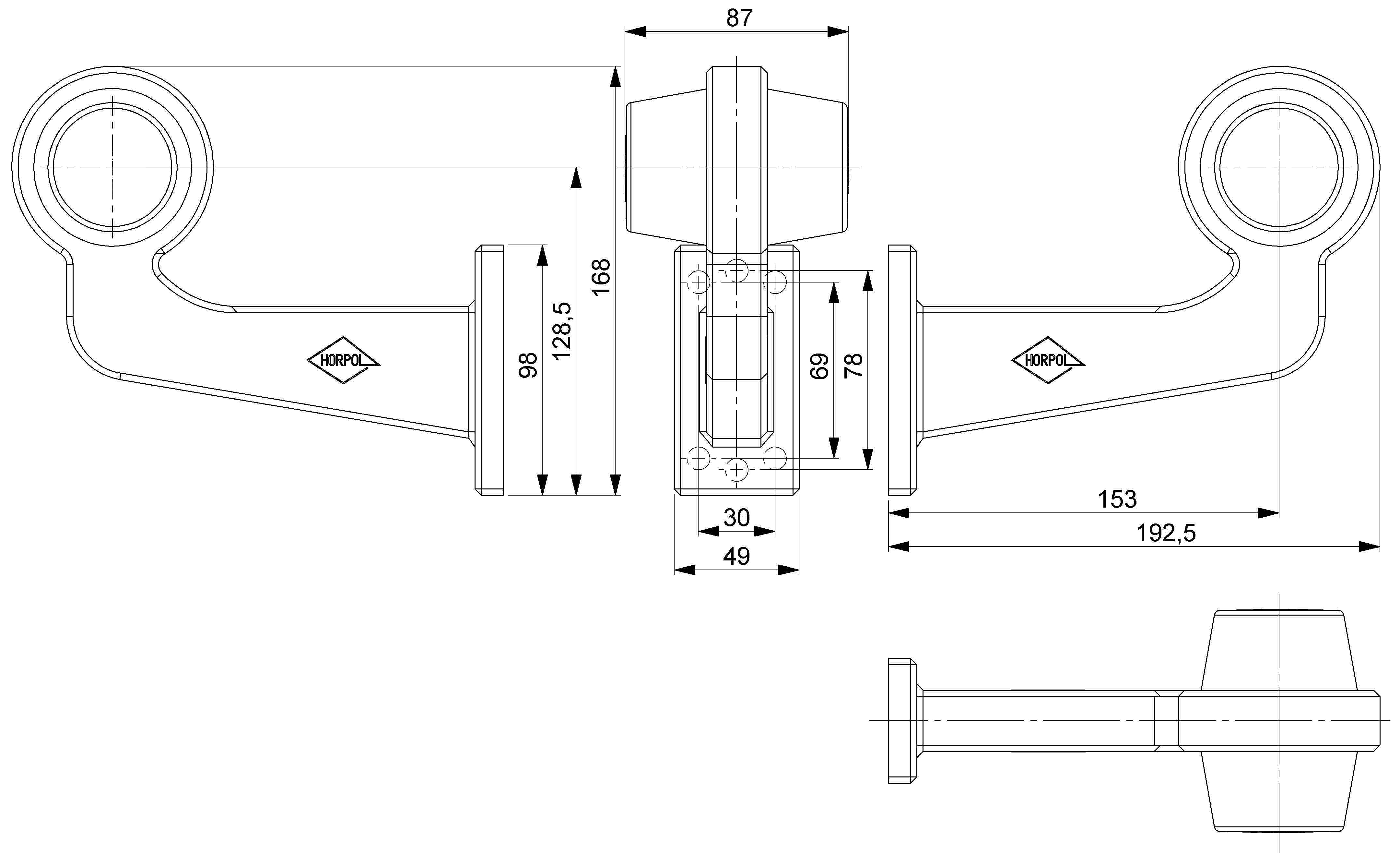

Marker lamp LD 2605 (technical drawing) 1 (marker-lamp-ld-2605-technical-drawing-1.ZIP)
Download
Page content (ld-2605.ZIP)
Download
