LRD 3043/Y-AM/B2/4K
Work lamp with warning light (4000 K)

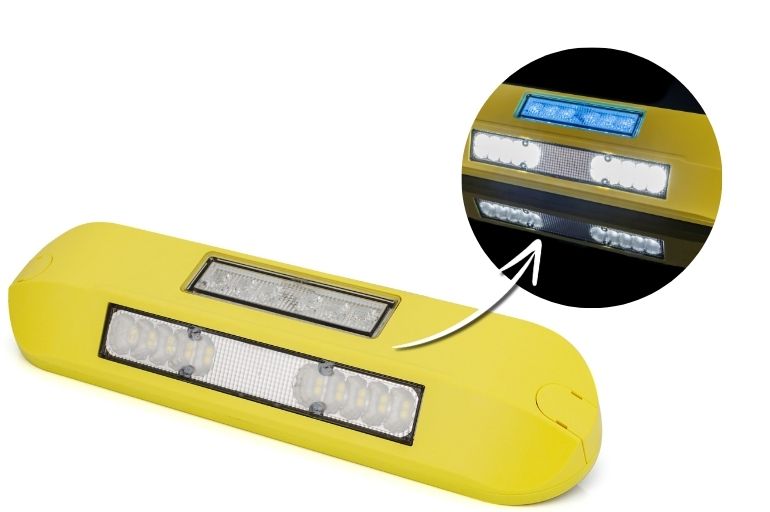

LED work lamp LRD 3043/Y-AM/B2/4K with warning light – reliability and safety for emergency vehicles.

The Horpol work lamp is designed specifically for emergency vehiclesambulances, and other medical service vehicles, where both excellent illumination of the work area and high vehicle visibility in traffic are essential. This technologically advanced solution combines powerful work lighting with a blue strobe-type warning light, enhancing operational safety in all conditions—both day and night.

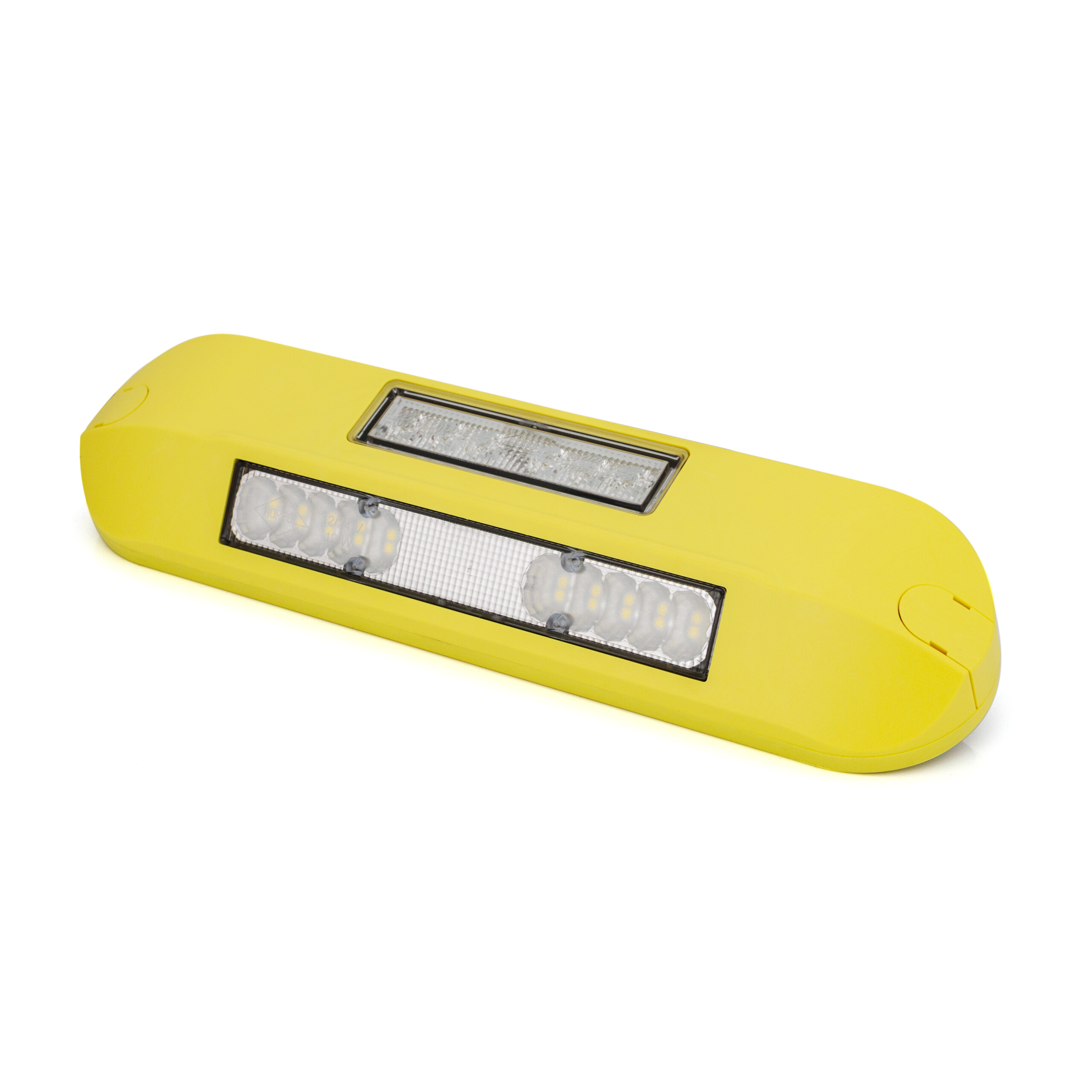

The lamp housing, finished in the dedicated RAL 1016 color, features an aerodynamic shape that fits seamlessly onto flat vehicle surfaces. The materials and design solutions used ensure resistance to extreme temperaturesmechanical damage, and complete waterproofing, as confirmed by the IP 68 protection rating.

Description

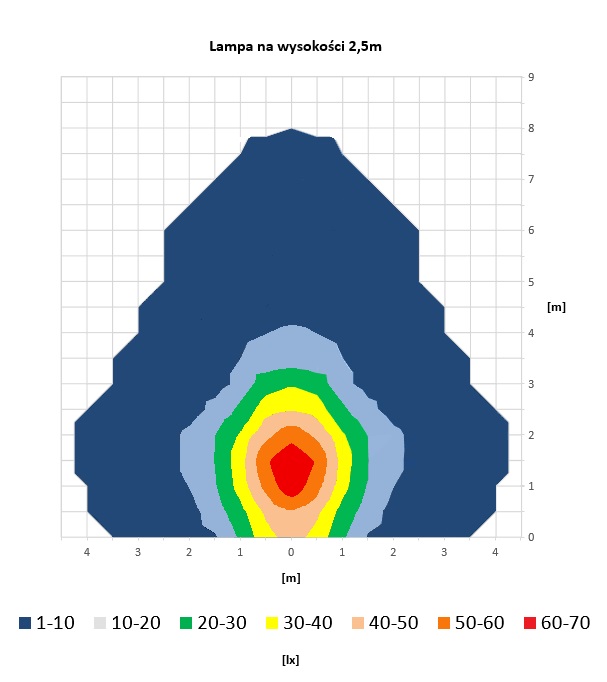

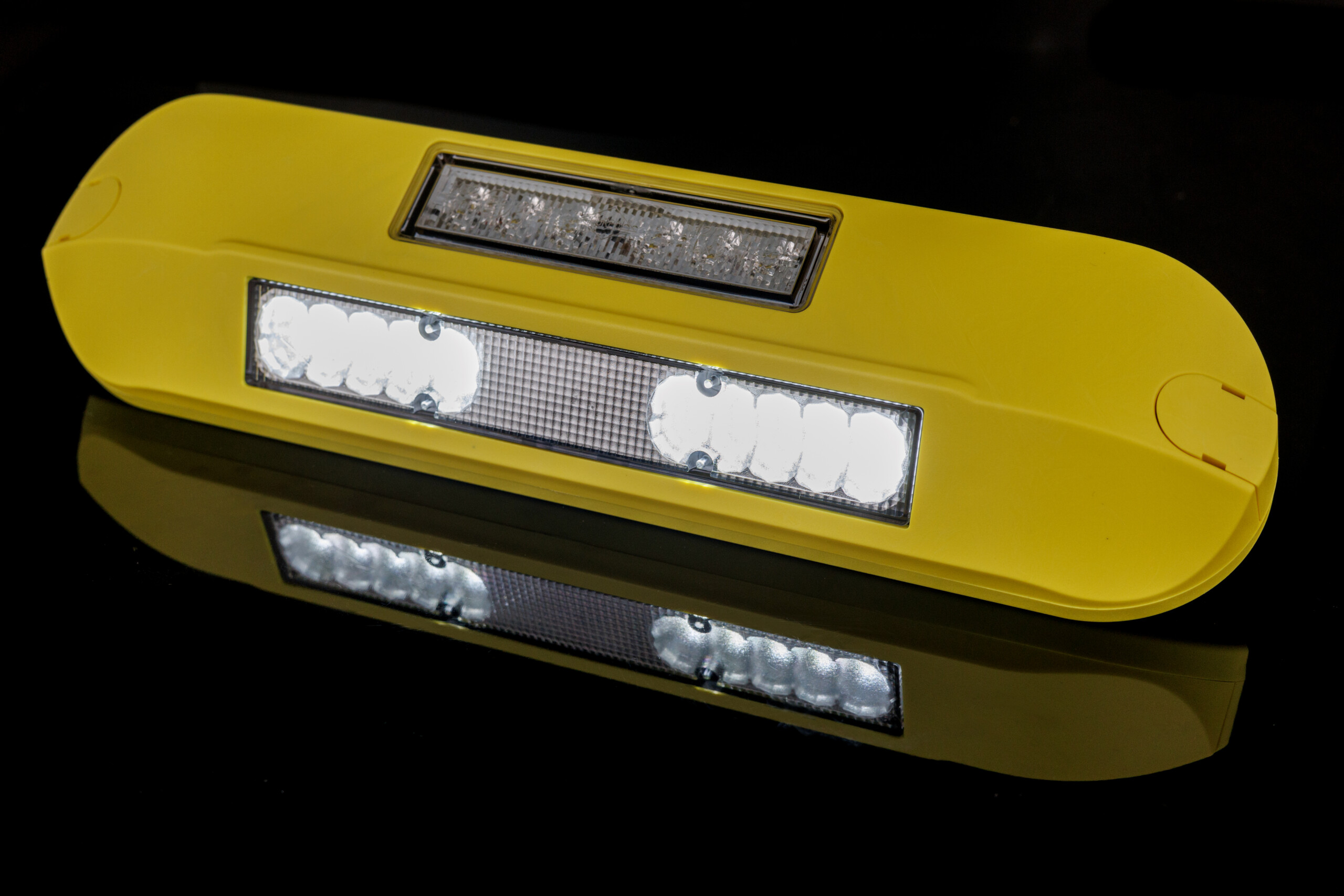

In work mode, the lamp uses 20 modern neutral-white LEDs (4000 K), which provide bright, evenly diffused light with an output of 1000 lumens. The rectangular shape of the fixture allows for a wide light spread, facilitating work around the vehicle. The brightness can be adjusted to lighting conditions using two brightness levels – day and night mode.

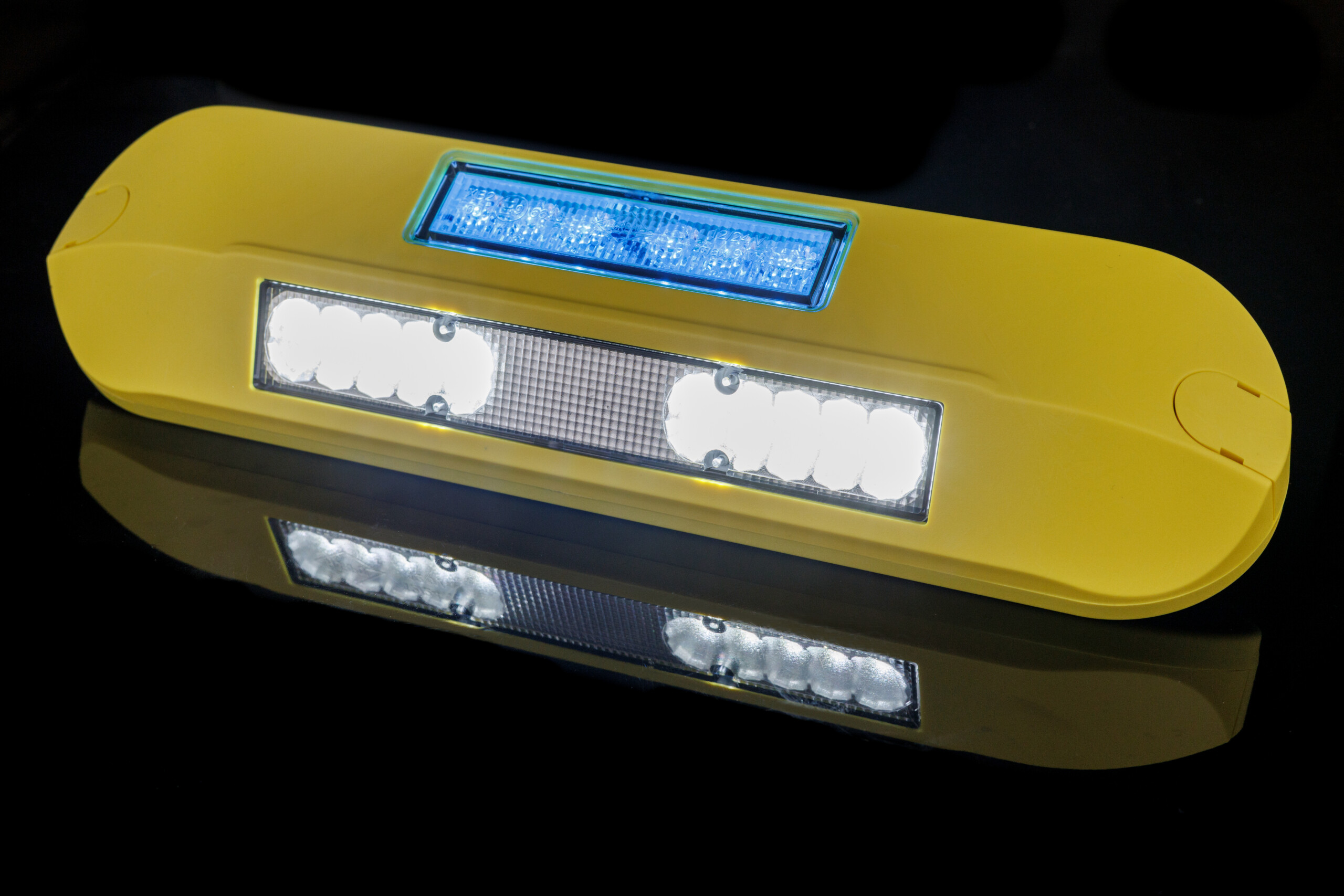

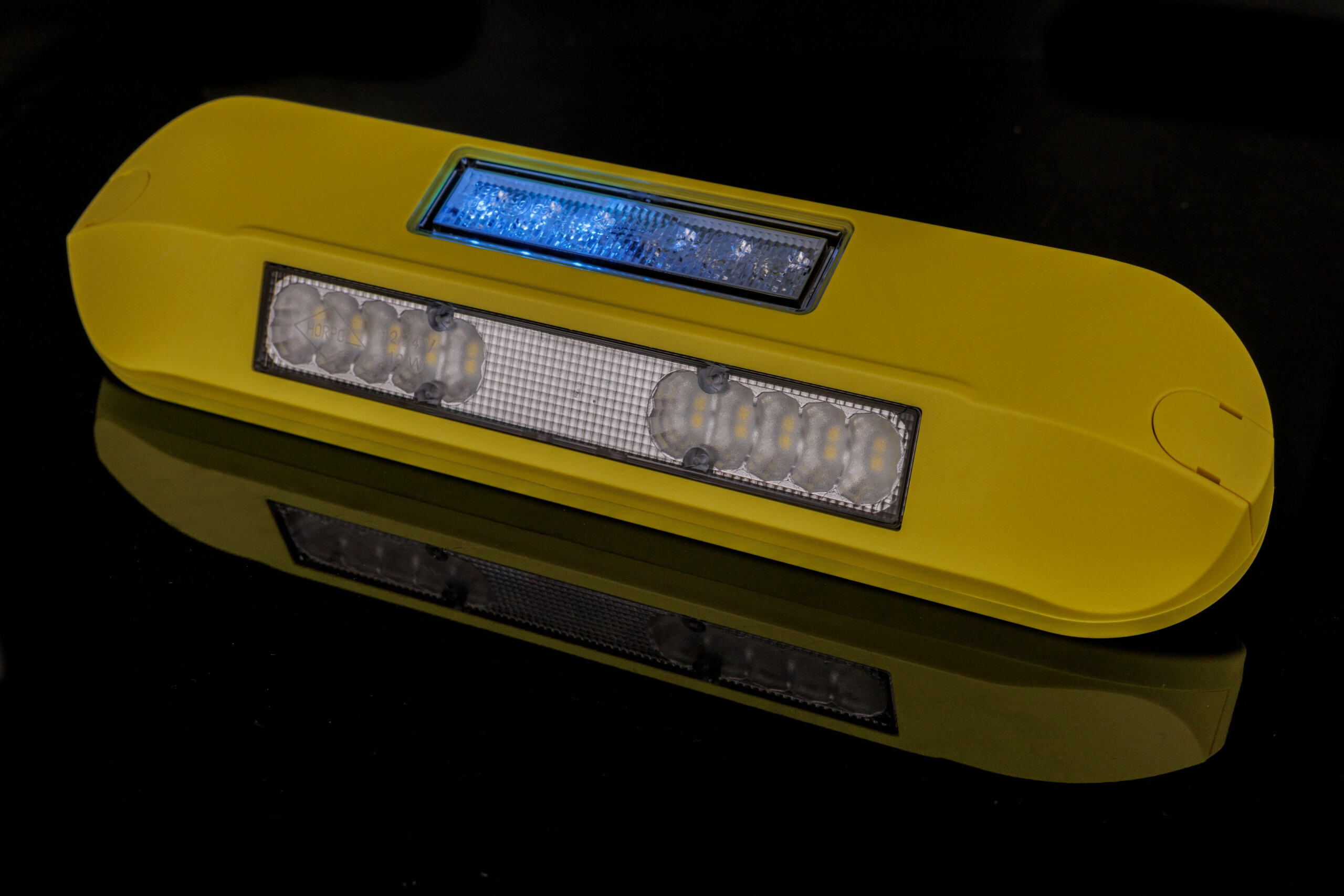

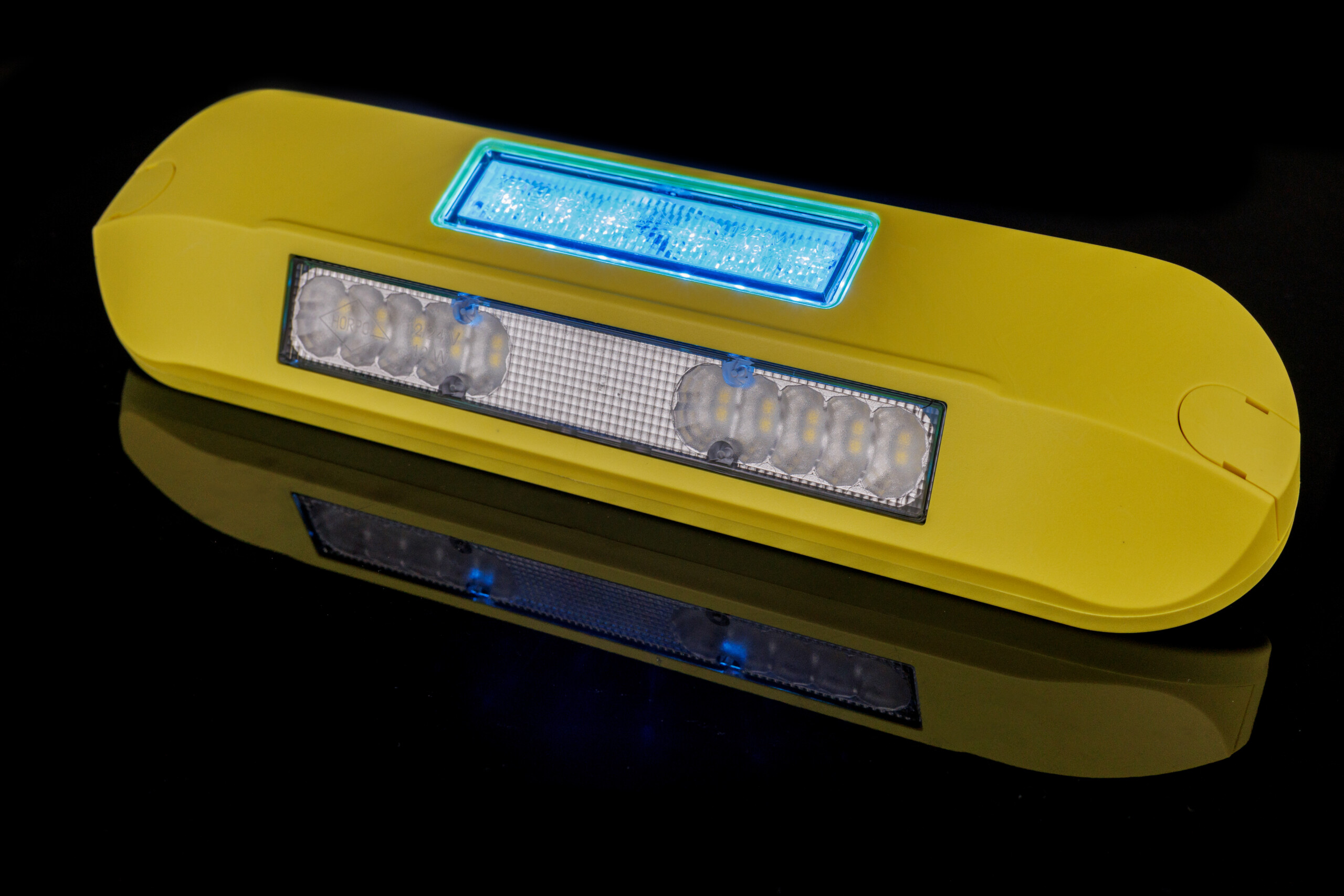

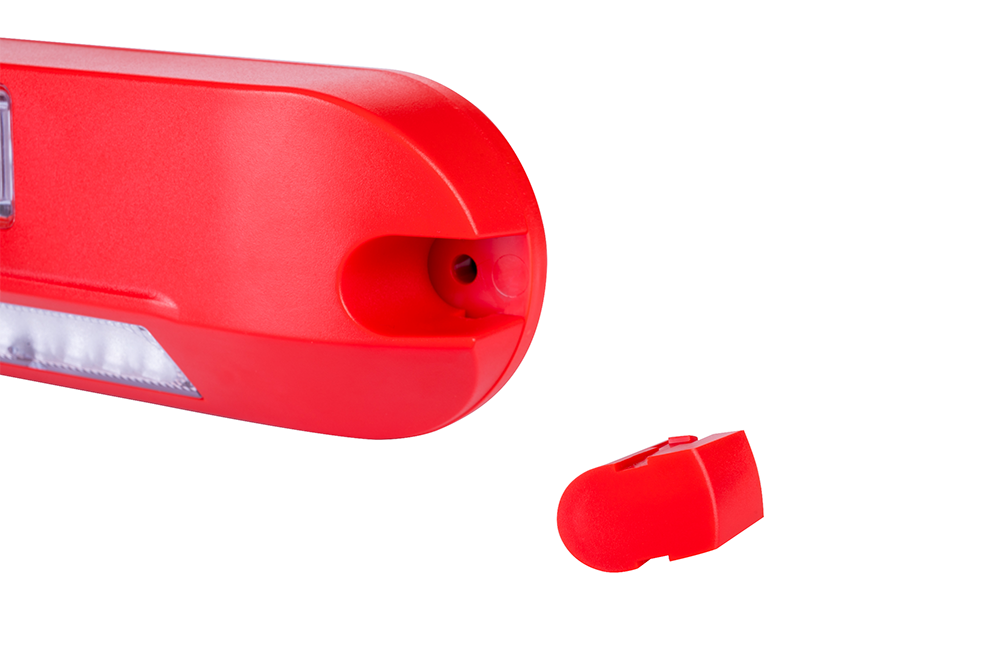

The warning light component, based on 6 blue LEDs, functions as a strobe light, ensuring excellent visibility of the vehicle on the road, especially during emergency situations or roadside operations. The lamp comes with a special mounting gasket and screw covers, which not only simplify installation but also improve the final aesthetic.

Importantly, the device is completely safe for the vehicle’s electrical system – it is EMC approved, ensuring no electromagnetic interference and full compatibility with other onboard electronic systems.

Technical data

Dispersed light
yes
Brightness level
day / night
Warning light
yes
Light group
HOR 137
LED quantity
26
Light category
working light
Supply voltage
12/24 V
Power rating
12 W/max 9 W
Operating temperature range
from -30°C to +50°C
Cable
5×0,5 mm2; length 0,5 m
Side
universal
Colour temperature
6500 K
Luminous flux
1000 lm
LED light
yes
Ingress protection rating
IP 68

Download

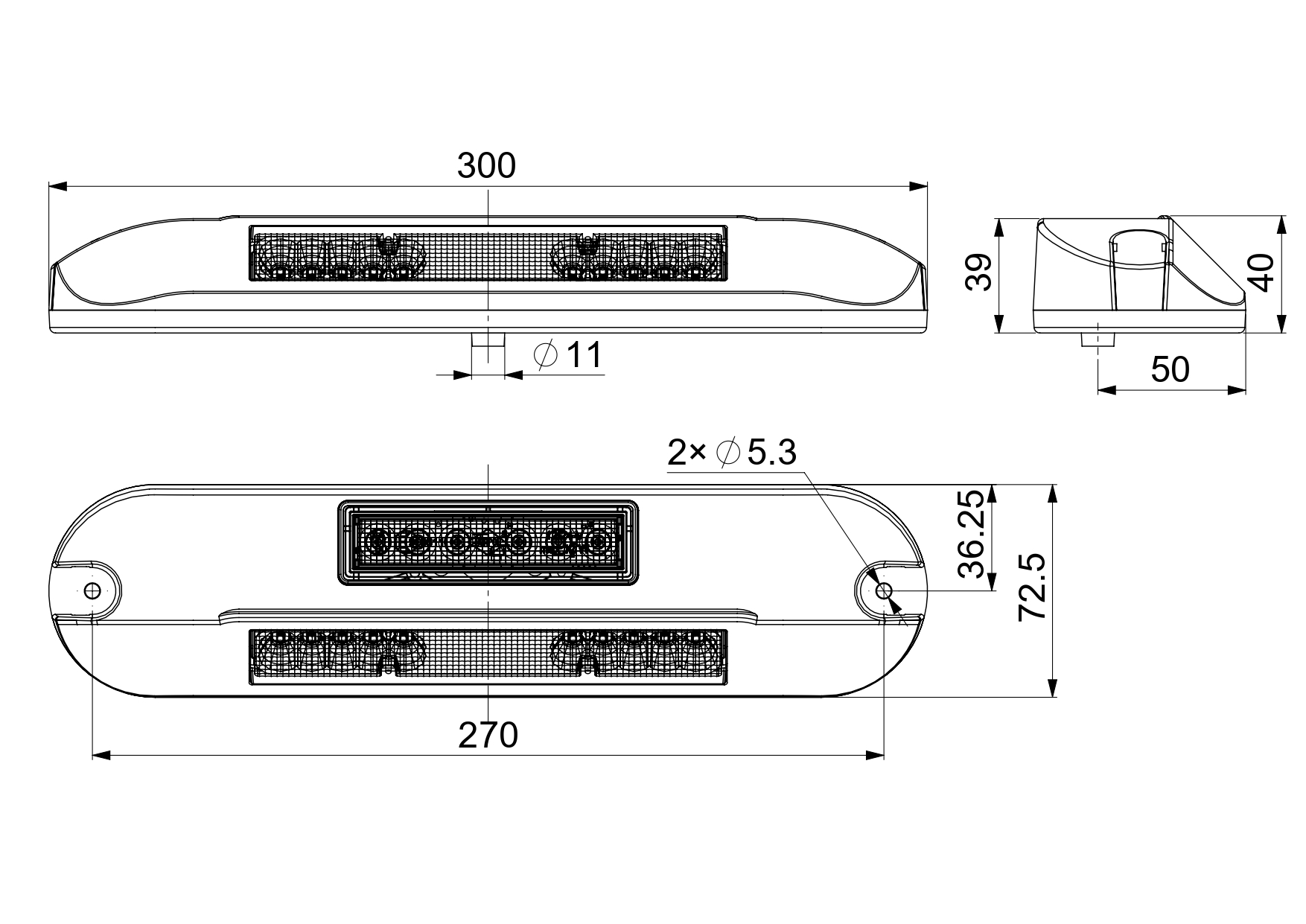

Work lamp with warning light HOR 137 (technical drawings) (work-lamp-with-warning-light-hor-137-technical-drawings.ZIP)
Download
HOR 121_XB2 (drawings ext. 01) (hor-121_xb2-drawings-ext-01-5.ZIP)
Download
HOR 121_XB2 (approval ext. 01) (hor-121_xb2-approval-ext-01-5.ZIP)
Download
Page content (lrd-3043-y-am-b2-4k.ZIP)
