LKD 2608
Direction indicator

Direction indicator, short arm, amber lens, 0,5 m cable, neon version

Technical data

LED light
yes
Light category
direction indicator
Light group
HOR 102B
Side
universal
Supply voltage
12/24 V
Power rating
2/4 W
Ingress protection rating
IP 68
LED quantity
18
Side direction indicator
yes
Cable
2×0,75 mm2; cable length 0,6 m
Operating temperature range
from -30°C to +50°C

Download

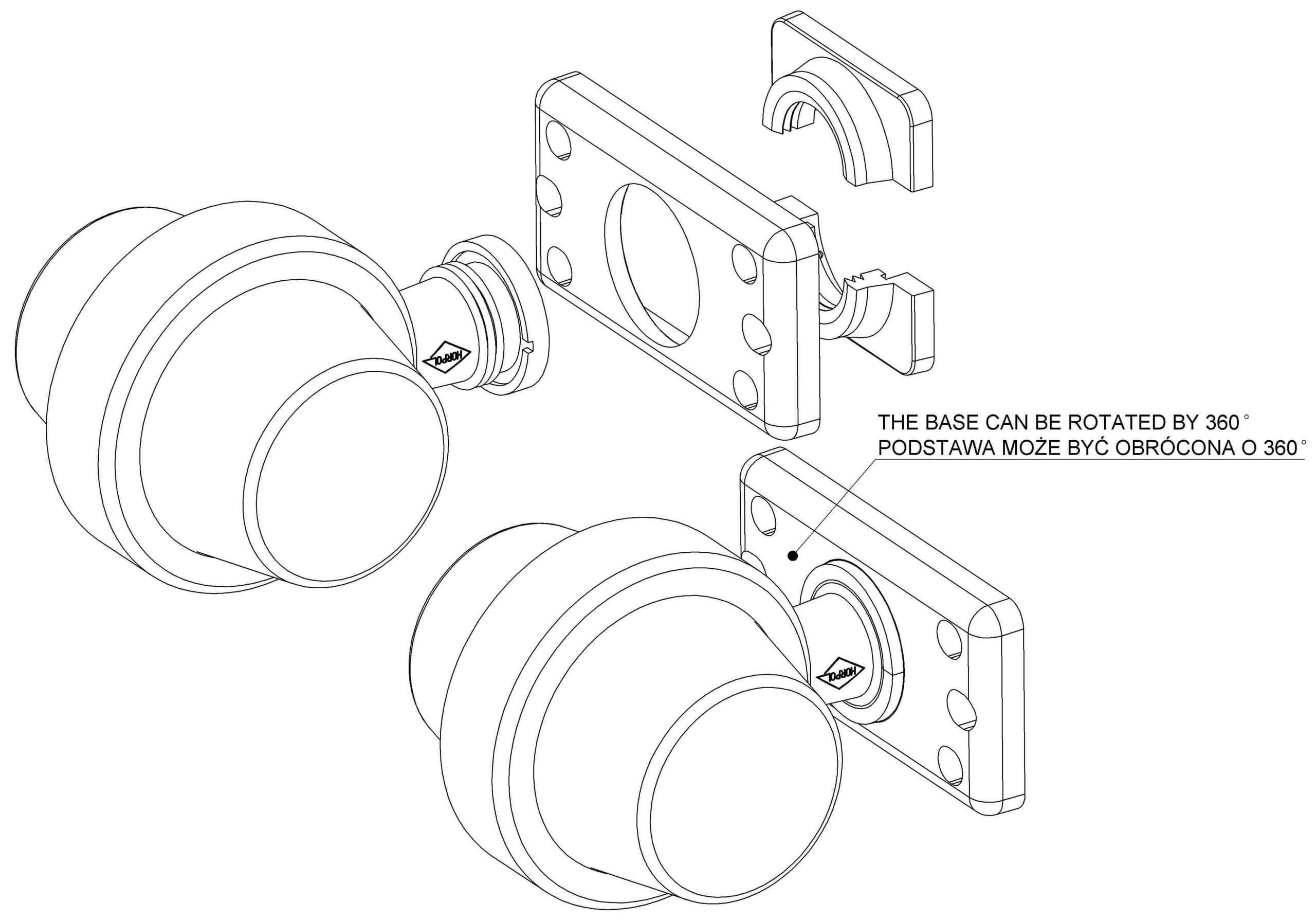

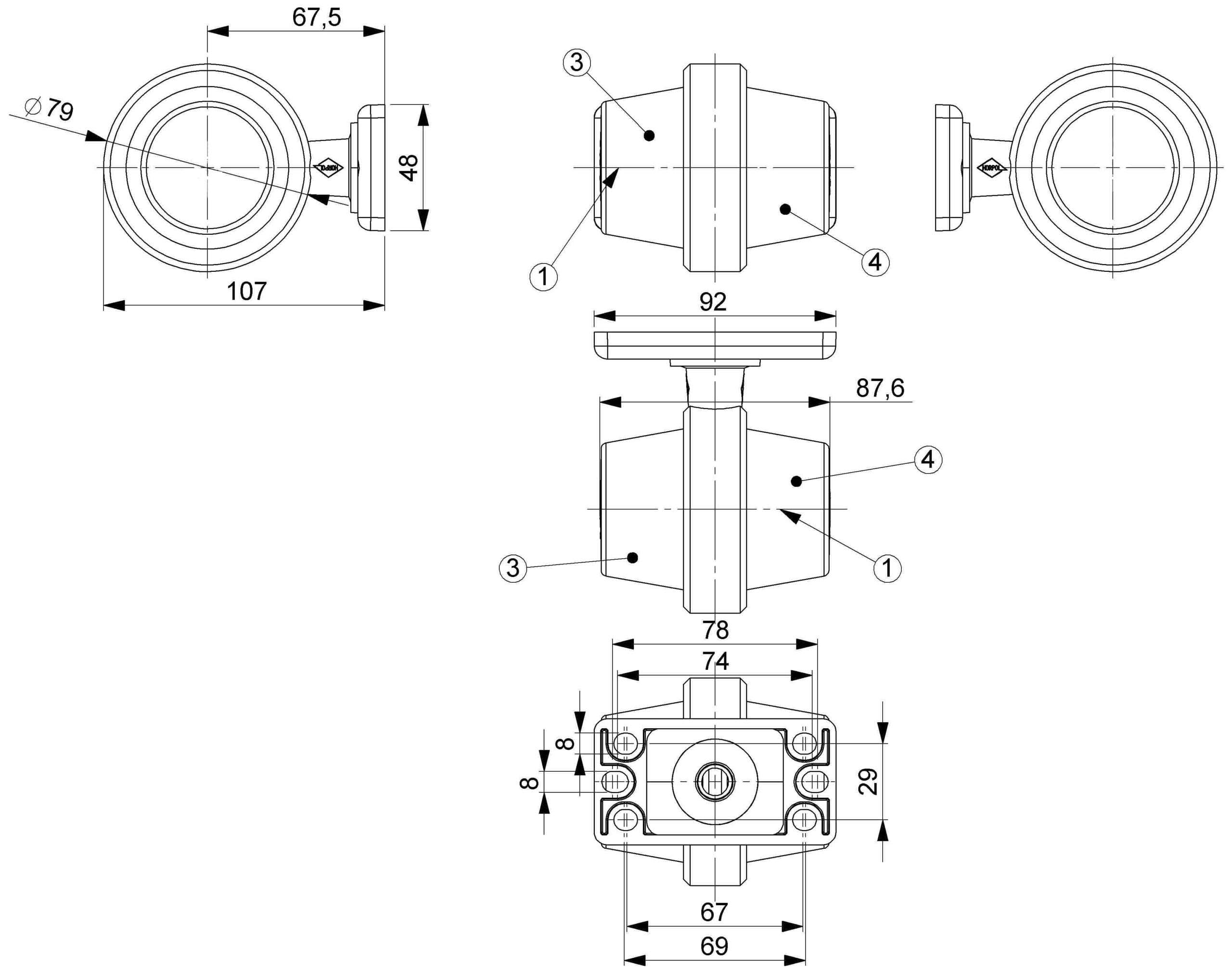

Direction indicator LKD 2608 (technical drawing) 1 (direction-indicator-lkd-2608-technical-drawing-1.ZIP)
Download
Direction indicator LKD 2608 (technical drawing) 2 (direction-indicator-lkd-2608-technical-drawing-2.ZIP)
Download
Page content (lkd-2608.ZIP)
