LD 2587
Marker lamp

Marker lamp white-red RIGHT, long arm, white and red lens, 0,5 m cable, “old school” version

Technical data

Light group
HOR 102A
LED quantity
10
Light category
marker
Rear position light
yes
Supply voltage
12/24 V
Power rating
1,2/3 W
Operating temperature range
from -30°C to +50°C
Side
right
Front position light
yes
LED light
yes
Ingress protection rating
IP 68

Download

Marker lamp LD 2587 (attachment) 1 (marker-lamp-ld-2587-attachment-1.ZIP)
Download
Marker lamp LD 2587 (homologation) 1 (marker-lamp-ld-2587-homologation-1.ZIP)
Download

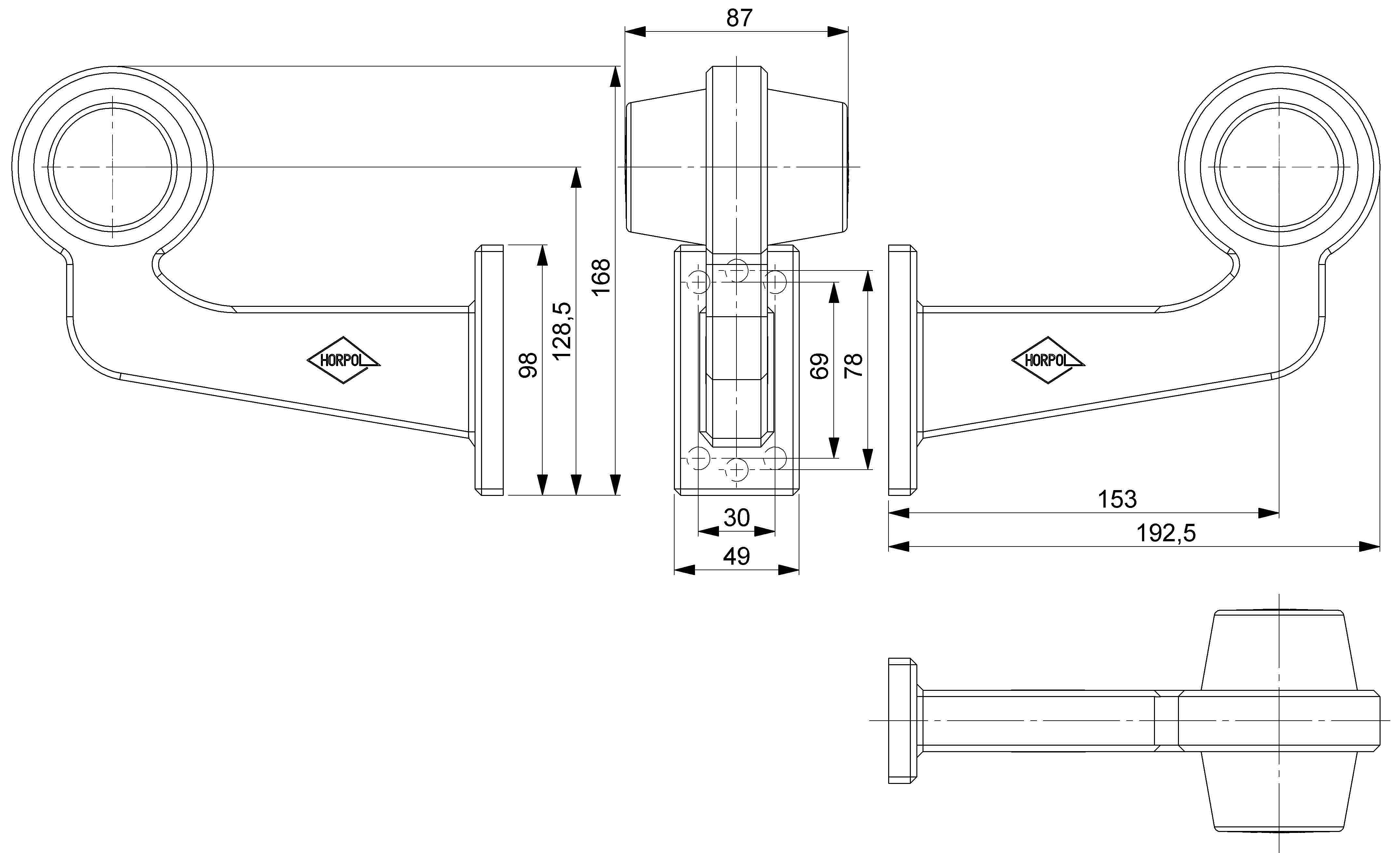

Marker lamp LD 2587 (technical drawing) 1 (marker-lamp-ld-2587-technical-drawing-1.ZIP)
Download
Page content (ld-2587.ZIP)
